3-phase luminaire TRACK PANEL IP20, black

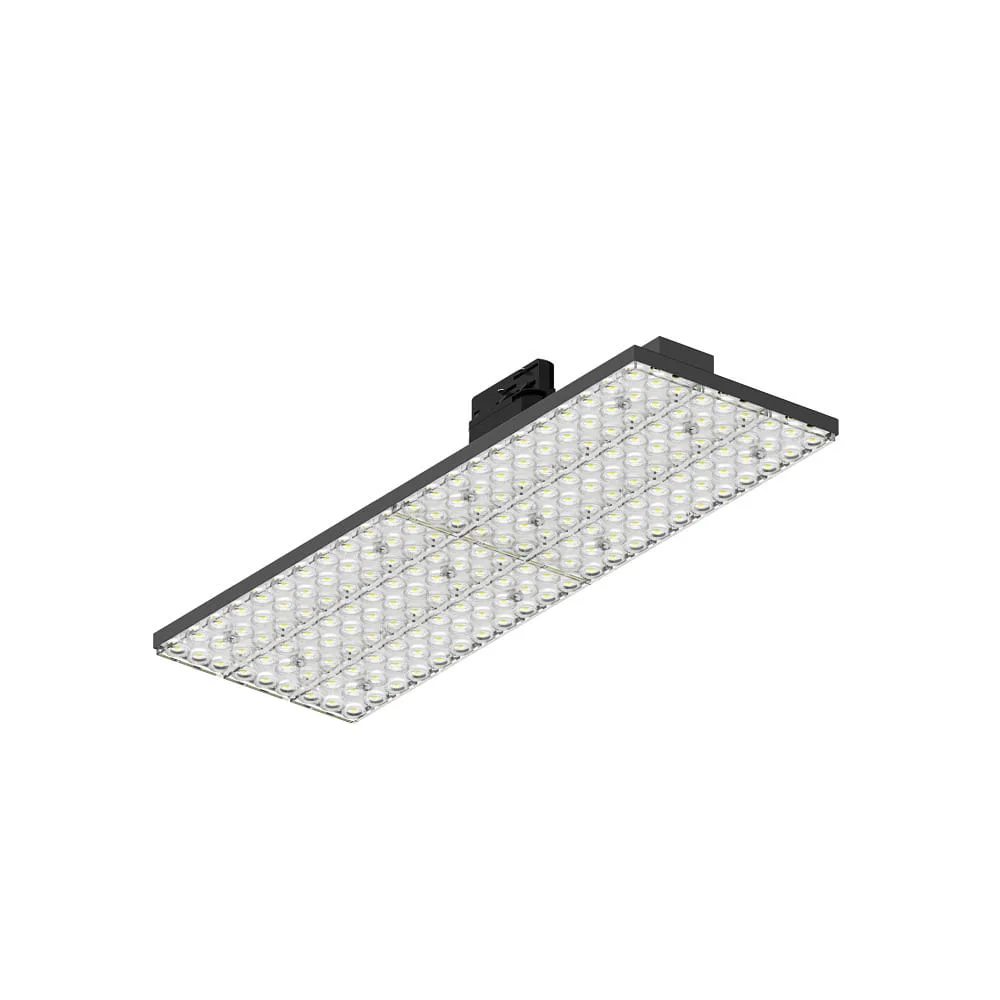

High-Quality 3-Phase LED Luminaire from SLV

The LED 3-phase luminaire TRACK PANEL from SLV impresses with its modern technology and high-quality workmanship. With a power consumption of only 40 watts, it offers an impressive light output of up to 12,300 lumens. The luminaire is available in color temperatures of 3000K (warm white) and 4000K (neutral white), allowing flexible adaptation to different needs. The black steel housing provides an elegant appearance as well as stability and durability.

Efficient Light Distribution and High Light Quality

The luminaire features an extremely wide beam angle of over 80 degrees, producing a large-area and even light distribution. A special light diffuser with a diffuser lens ensures pleasant and glare-free illumination. The LED’s color consistency is very low with SDCM3, meaning the light color remains very stable and uniform. This guarantees consistently high light quality that meets the demands of modern lighting solutions.

Easy Installation and Flexible Use

The TRACK PANEL luminaire is equipped with a current rail adapter, allowing easy and quick mounting on 3-phase power tracks. The included LED driver is current-controlled and can be easily replaced if needed, facilitating maintenance. The luminaire is not adjustable but offers a stepwise adjustable color temperature to customize the light atmosphere individually.

Technical Details and Protection Class

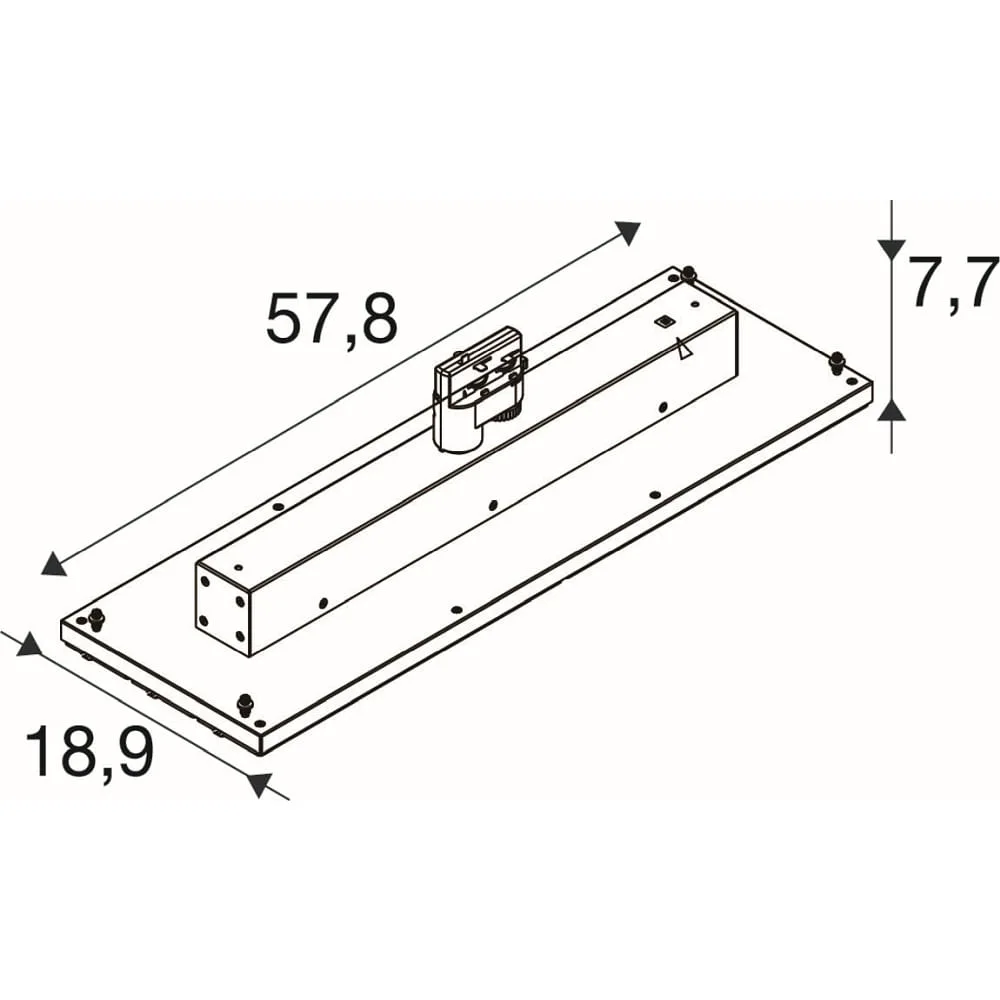

With an IP20 protection rating, the luminaire is suitable for use in typical environments that do not require special protection against dust or moisture. The operating voltage ranges between 220 and 240 volts, corresponding to standard power grid values. The ambient temperature in which the luminaire operates optimally is between -20 and 40 degrees Celsius. Protection class 1 guarantees safe operation through a protective earth connection. The dimensions of the luminaire are 57.8 x 18.9 x 10.5 cm, making it a compact and unobtrusive lighting element.

Maximum Flexibility and Performance

The TRACK PANEL luminaire can be operated on circuit breakers with release characteristics B16 and C16. Up to 20 luminaires can be protected with B16 and up to 34 luminaires with C16. This enables flexible and powerful installation that can optimally illuminate larger areas. Thanks to the combination of a high luminous efficacy of 175 lumens per watt and robust construction, this lighting system is an excellent choice for professional lighting solutions.
