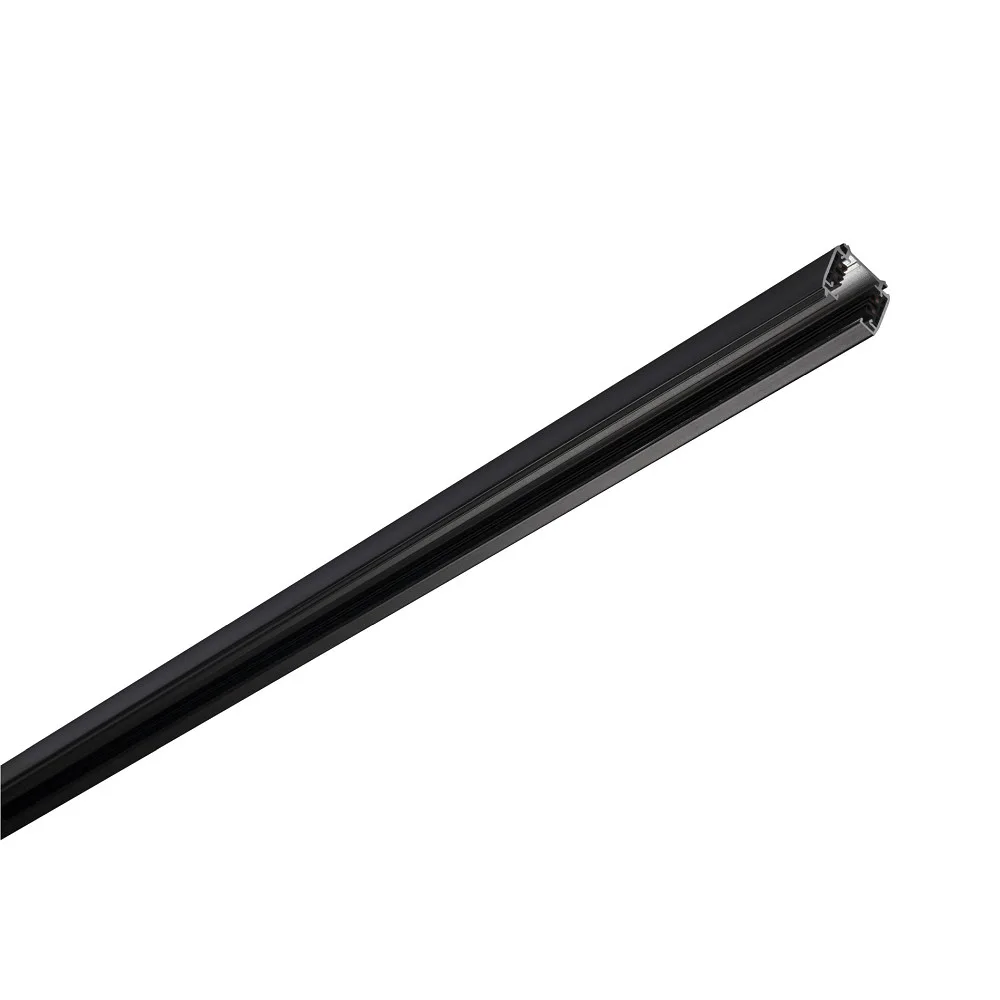

3-Phase surface track S-TRACK, 220-250V, 3m, black RAL 9011

High-Quality 3-Phase HV Surface-Mounted Busbar System

The 3-phase HV surface-mounted busbar S-TRACK ON/OFF from SLV offers a reliable and flexible solution for the electrical supply of luminaires. With a length of 300 cm and a black finish, the rail system integrates discreetly and modernly into any environment. The busbar is designed for an operating voltage of 220-250V~ and a mains frequency of 50/60Hz, making it especially versatile. Thanks to a maximum current load of 16A per phase, powerful luminaires can be operated without any problems.

Robust Materials and Thoughtful Design

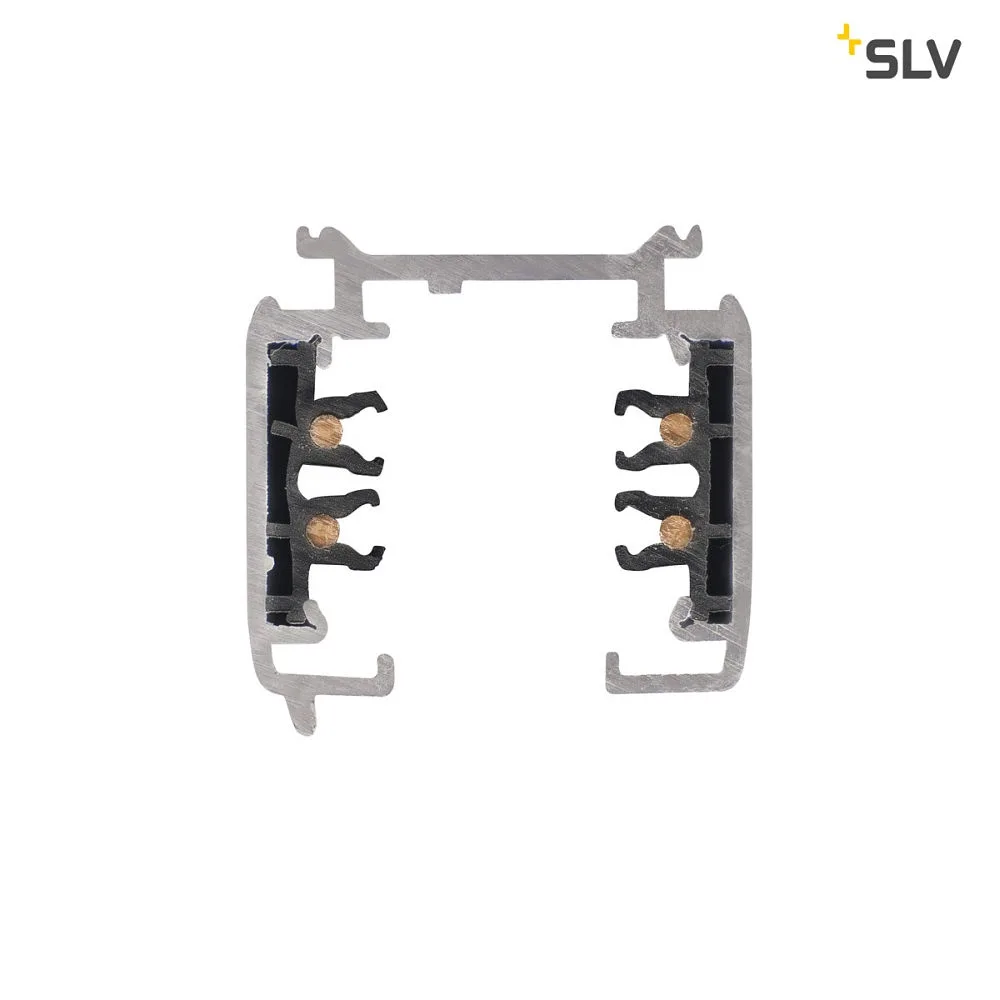

The housing of the busbar is made of aluminum, providing stability and a low weight of only 2.638 kg. The internal copper conductors ensure optimal conductivity and high safety during power transmission. Plastic components complement the design and guarantee durable and safe use. With a protection class of 1 and an IP20 rating, the system is well protected against contact while offering the necessary robustness for everyday use.

Easy Installation and Individual Adjustment

The 3-phase high-voltage busbar is specially designed for surface mounting and can be easily cut to the desired length with standard metal hacksaws. This allows the system to be optimally adapted to different spatial conditions. The product is supplied without accessories such as suspension brackets, feed-in units, end caps, luminaires, or connecting plugs, so you can choose the appropriate equipment individually. With optional accessories, the busbar can also be used as a pendant rail.

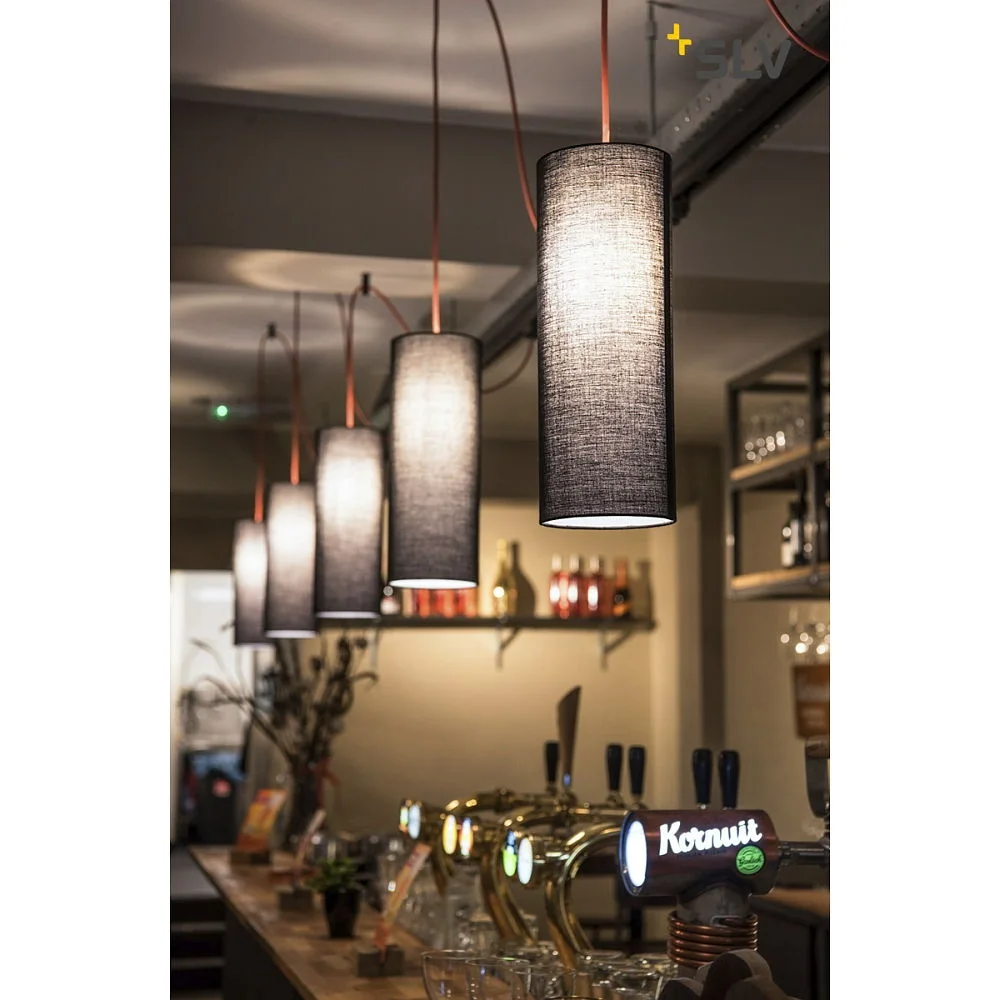

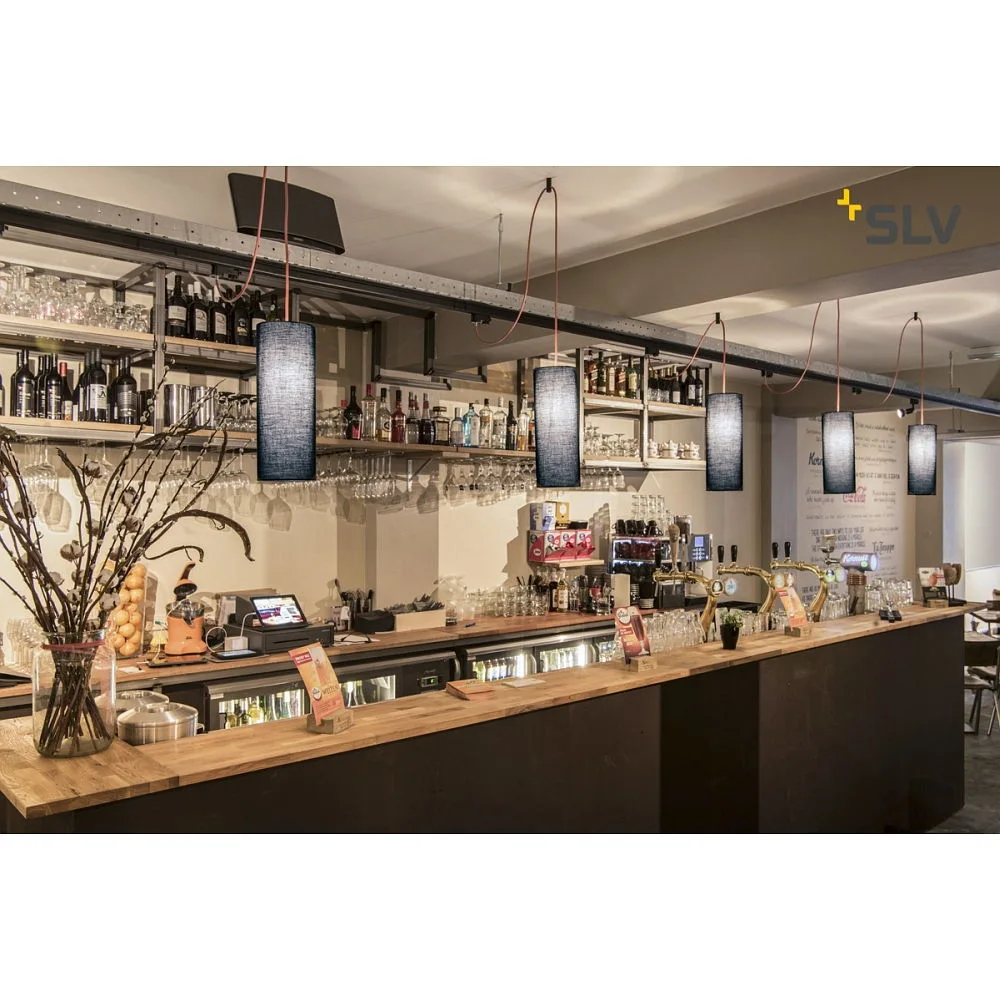

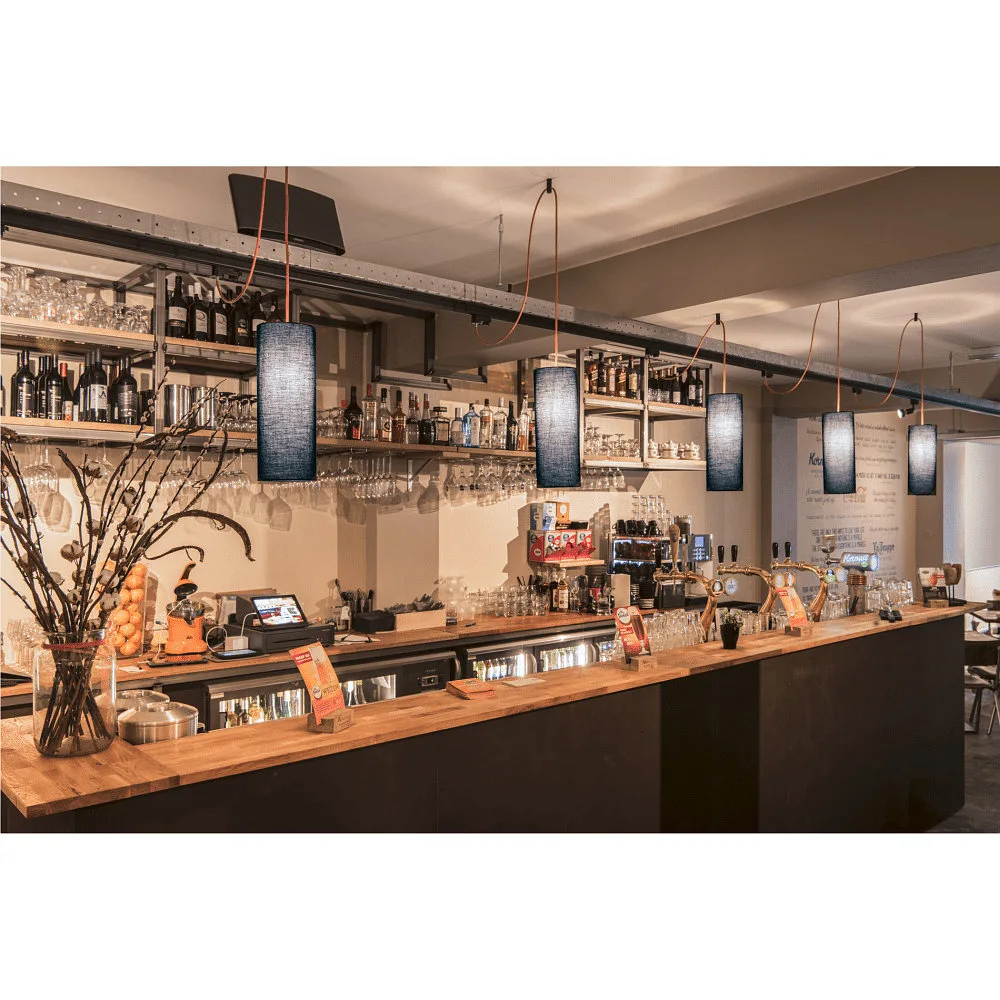

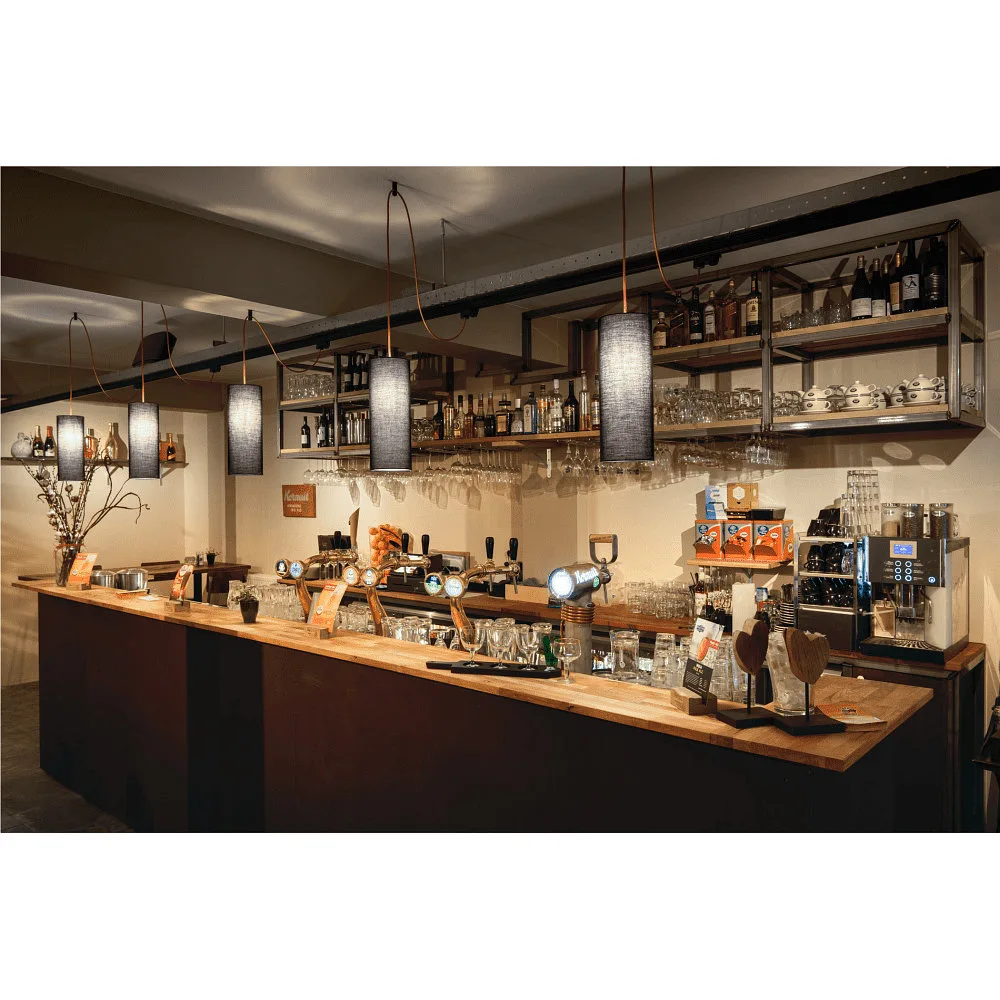

Flexible Usage Options for Your Lighting

This rail system is ideal for flexibly integrating and positioning luminaires. It supports simple control via ON/OFF switching, as no integrated DALI signal lines are present. This makes the system especially suitable for use with switchable luminaires that can be easily connected to the mains. The three phases enable an even distribution of the electrical load and increase capacity up to 3680 watts per phase.

Various Versions and Accessory Options

The busbar is available in different lengths and offers a choice between black and white colors to harmoniously match the existing design. The optional accessories expand the range of applications, as feed adapters, connecting plugs, and other components are available separately. This allows the system to be perfectly tailored to individual requirements and easily expanded to create an optimal lighting solution.
