LED Floor recessed luminaire DASAR® 270 LED Outdoor luminaire, round, asymmetrical light beam, 30W, IP65/IP67, black

SLV


E
Product data sheet

You do not have the permission to see the prices

Shipping time: out of stock

Product no.: 1002893
EAN: 4024163230889
In stock: 0



SLV LED Floor recessed luminaire DASAR® 270 LED Outdoor luminaire, round, asymmetrical light beam, 30W, IP65/IP67, black

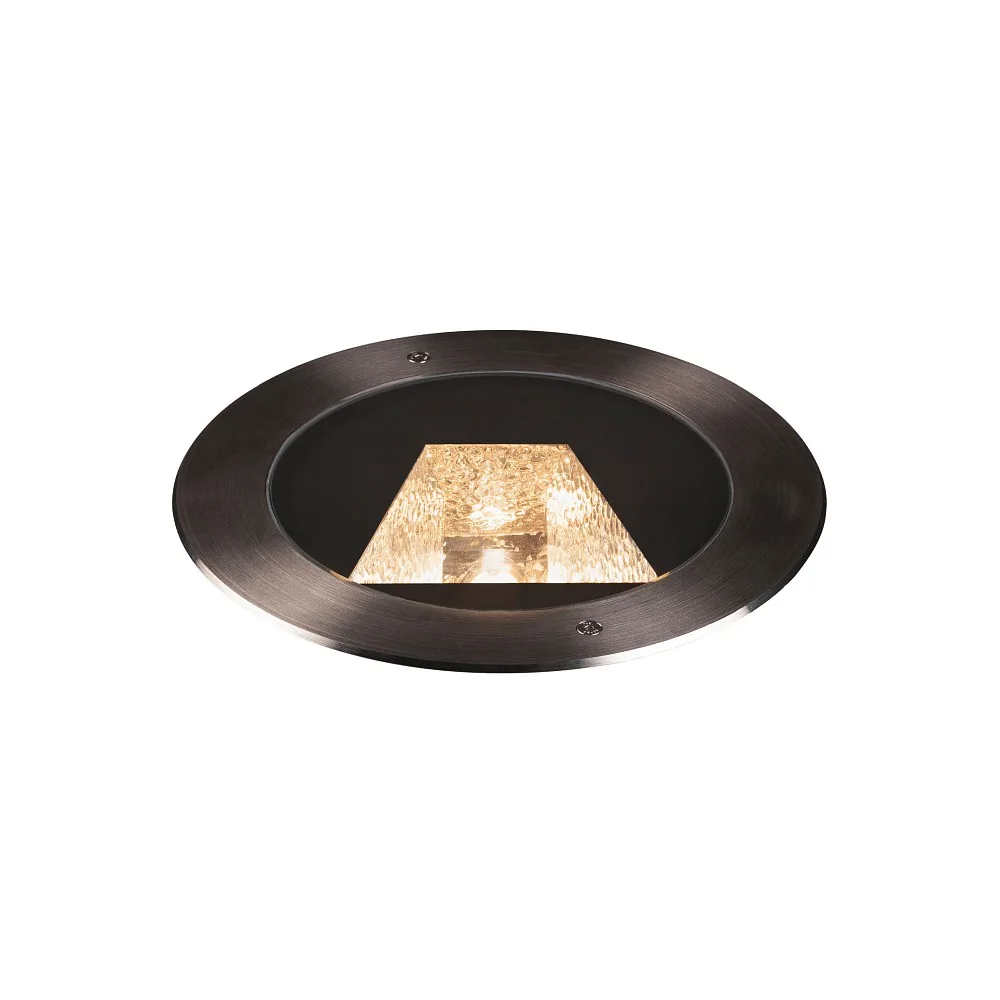

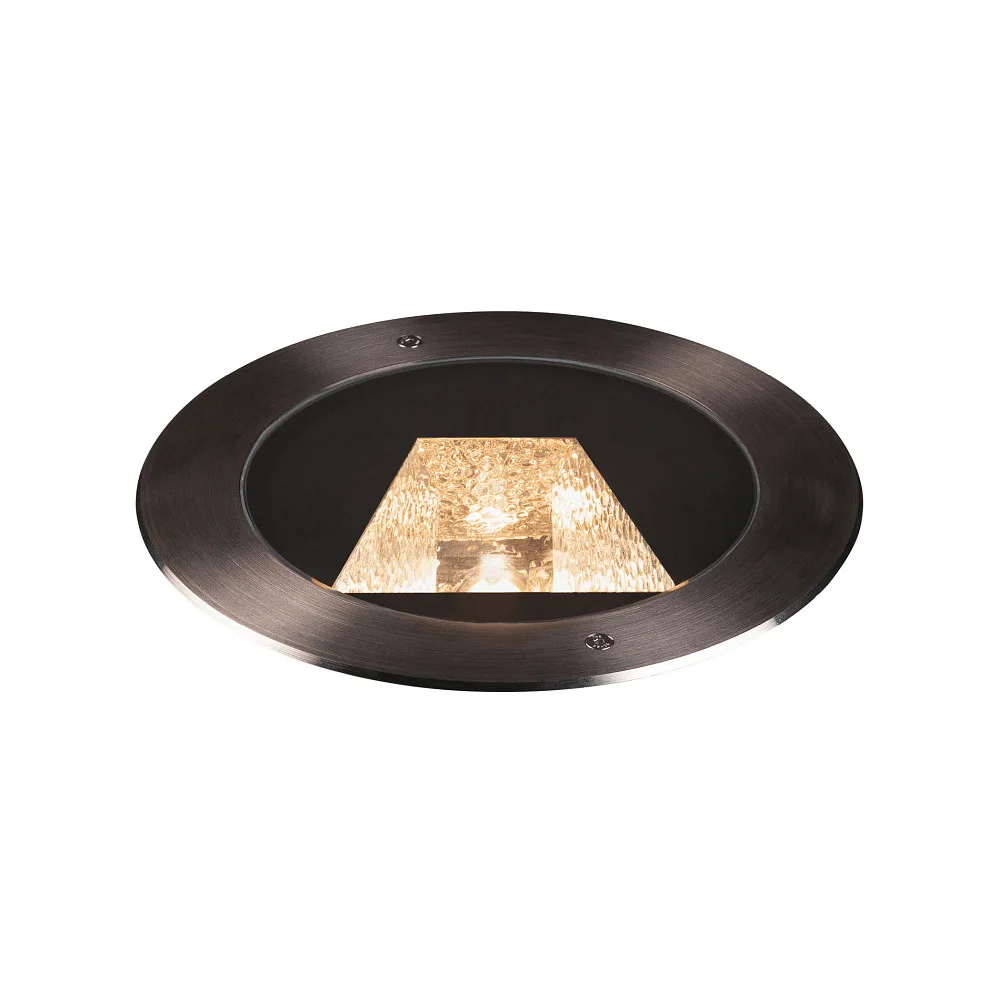

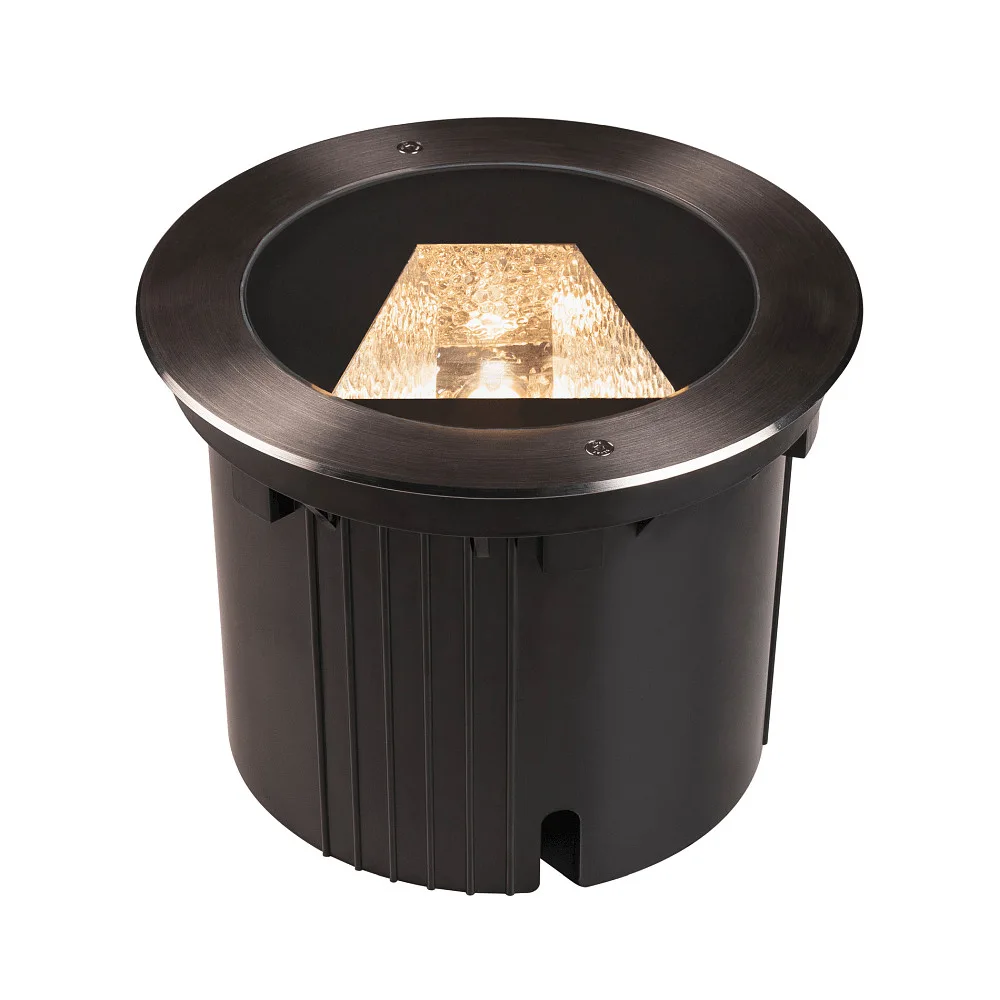

The outdoor LED ground recessed light DASAR® 270

The outdoor LED ground recessed light DASAR® 270 is a high-quality product specifically designed for ground use. With a diameter of 27 cm and a height of 20.3 cm, it is both functional and aesthetically pleasing. The visible part has a diameter of 27 cm and a height of 0.4 cm, providing subtle lighting.

Technical details

The light has a power consumption of 30W and a luminous flux of 2000lm. The light color is warm white, creating a cozy atmosphere. The light distribution is asymmetrical, providing targeted illumination. The LED can be replaced by a professional and has an average lifespan of 50,000 hours.

Robust and durable

The ground recessed light DASAR® 270 is made of high-quality stainless steel 316 and has a partially frosted glass cover. This makes it extremely robust and durable. With an IP protection rating of IP65/67, it is well protected against splashing water, dust, and temporary submersion. The high IK08 protection offers additional security against vandalism.

Versatile applications

With a high weight capacity of 2000kg, the ground recessed light DASAR® 270 is also suitable for drivable areas. It is ideal for outdoor use and can be used in both residential and commercial settings. The easy installation makes the installation straightforward.

Environmentally friendly and energy efficient

The ground recessed light DASAR® 270 is not only durable and robust, but also energy efficient. With an energy efficiency class of E and an energy consumption of 30kWh/1000h, it contributes to environmental protection. Thanks to the integrated LED module and LED driver, it is ready for immediate use and can be directly connected to the 230V mains voltage.

Colour:
stainless steel
Glass color:
clear

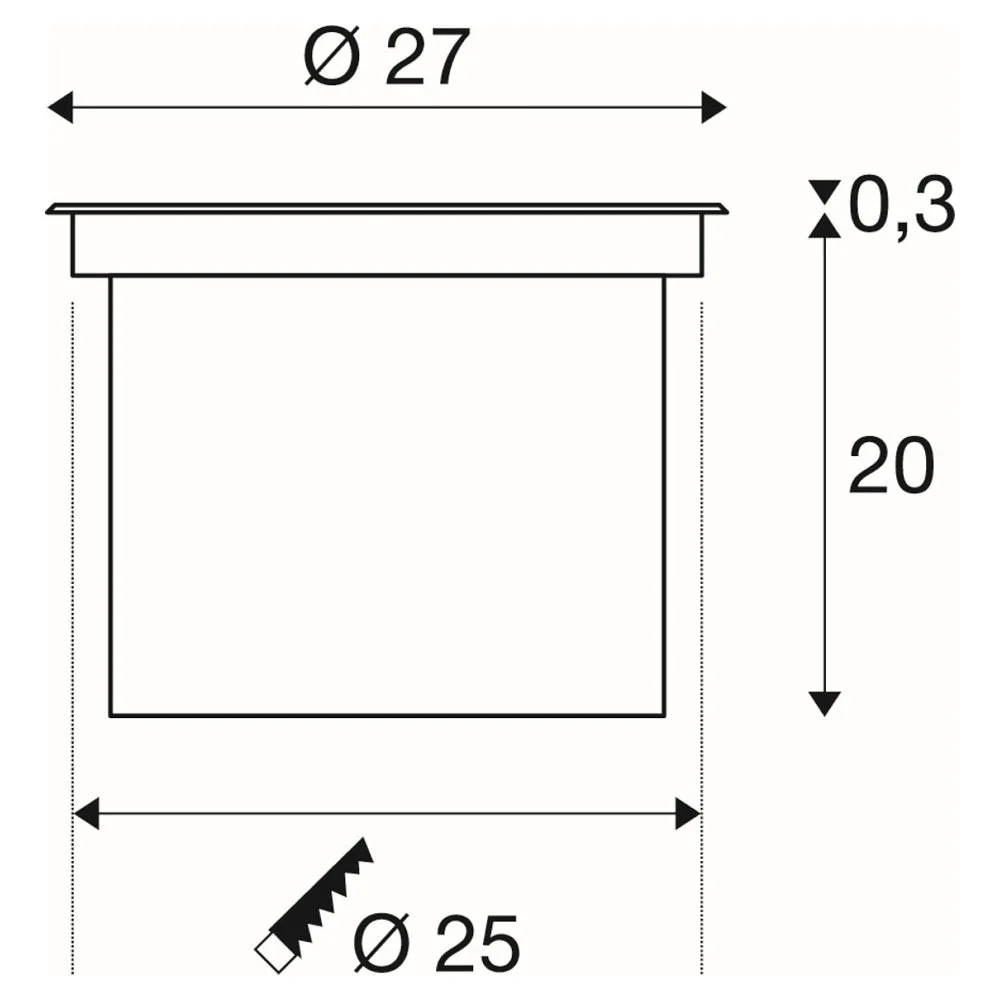

Dimension:
Ø∕ H: 27/20.3 cm
visible part-Ø∕ H: 27/0.4 cm
Material:
aluminium
stainless steel
glass
Weight:
6.173 kg
Product type:
floor recessed luminaire
Lamp shape:
round
Bulbs in delivery:
yes
Accessories:
driver - included in delivery
glass - included in delivery
recessed housing - included in delivery
connection cable - not included in delivery
Application area:
suitable for outdoor use
Field of application:
floor
Operating voltage:
220-240 V~
Dimmable:
no
Power frequency:
50/60 Hz
Power consumption:
30 W
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Voltage:
Clamp
Light colour:
warm white
Light emission:
asymmetrical
Beam direction:
up
Light flux:
2000 lm
Light yield:
66,67 lm/W
Nominal current:
700 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
80 Ra
1B
IK-Rating:
IK08 up to 5.00 Joule
Throughwiring (installation of multiple luminaires in a row) is possible:
yes
Fitting depth:
19.9 cm
Fitting opening Ø:
25 cm
Wire/connection lead diameter:
7 - 13mm
Max. current carrying capacity:
30 A
Weight capacity of product:
2000 kg
Protection class:
1
IP-protection class:
IP65 / IP67
ambient temperature:
-20°C ... +35°C
Energy efficiency category:
E
EPREL No:
916518
Energy consumption:
30 kWh/1.000 h
Article number:
1002893
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
