luminaire head M-POL M LOUVER DALI controllable IP65, anthracite dimmable

SLV

Print product information sheet▶

question regarding the article

SLV luminaire head M-POL M LOUVER DALI controllable IP65, anthracite dimmable

Print product information sheet▶

question regarding the article

Product data sheet

You do not have the permission to see the prices

Shipping time: in stock

Product no.: 1006392
EAN: 4024163266482
Nearly out of stock

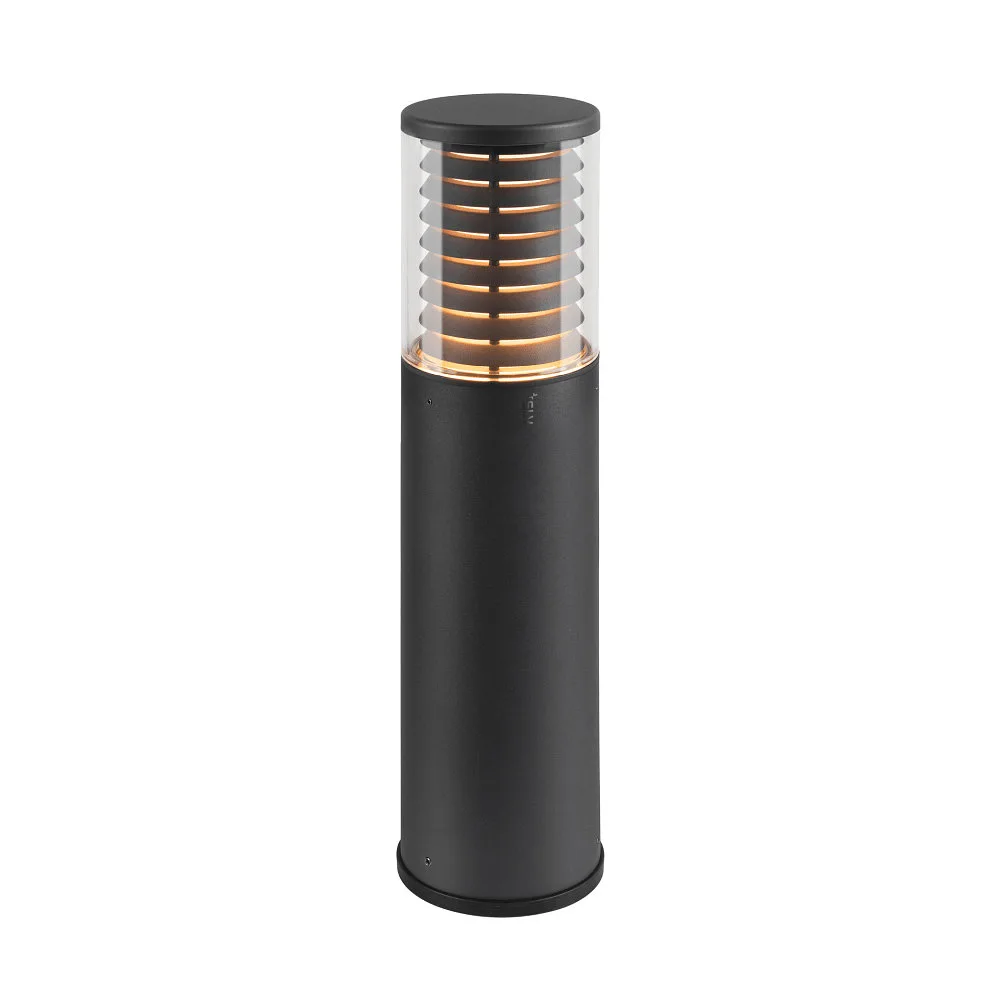

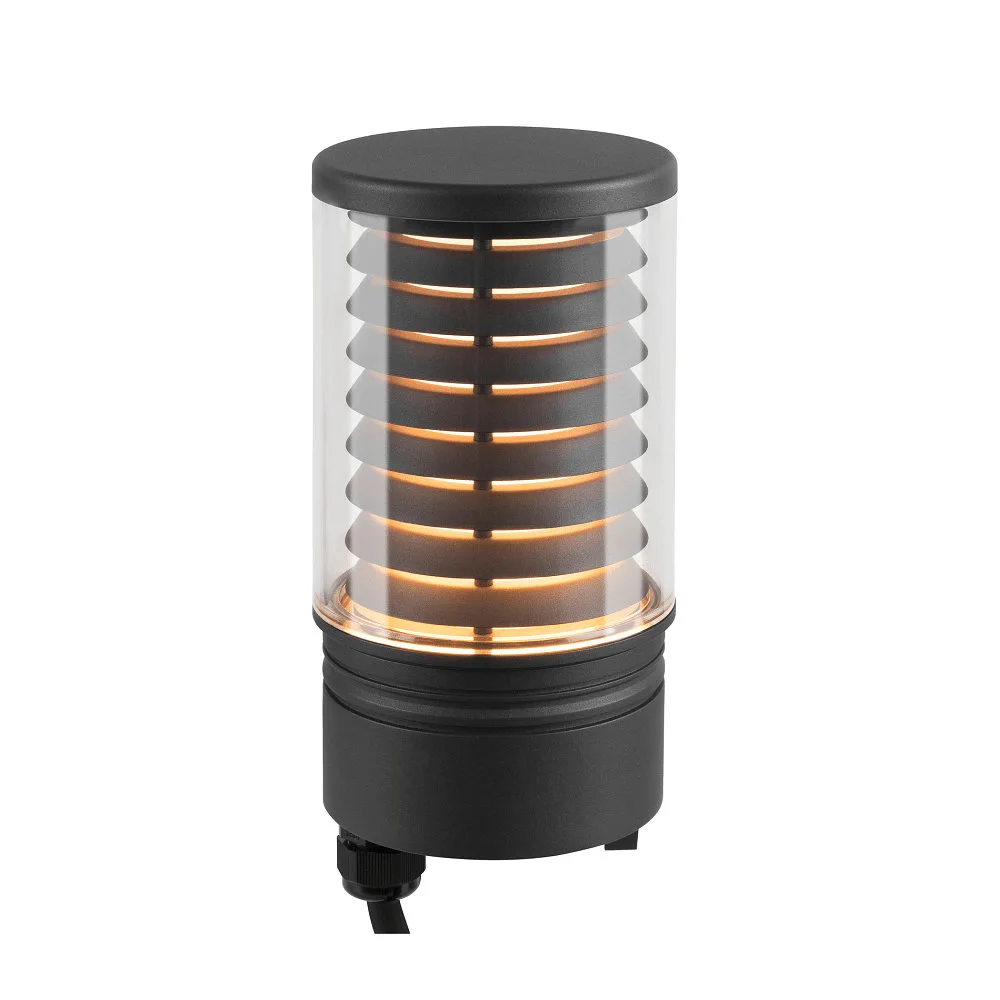

LED Luminaire Head M-POL M LOUVER

The LED Luminaire Head M-POL M LOUVER offers a high-quality lighting solution for outdoor areas. With a power of 19W and a luminous flux of 350-370lm, this luminaire head provides pleasant and efficient illumination.

Versatile Applications

Thanks to its robust aluminum construction and IP65 protection against moisture and foreign objects, the LED Luminaire Head M-POL M LOUVER is ideal for outdoor use. The IK10 vandalism protection also ensures high resistance to external influences.

Energy Efficient and Durable

With an energy efficiency class E and an average lamp lifespan of 50000 hours, this luminaire head is not only environmentally friendly but also extremely durable. The maintenance-free LED technology also ensures a long lifespan without the need to replace the light source.

Flexible Control Options

The LED Luminaire Head M-POL M LOUVER is equipped with a DALI dimmer that allows for individual control of brightness. By daisy-chaining, multiple luminaires can be installed in a row to achieve large-area illumination.

Modern Design and High-Quality Craftsmanship

The round luminaire head in anthracite impresses not only with its modern design but also with its high-quality craftsmanship. With a size of Ø 12.3 / H 25.9 cm and a weight of 1.81 kg, this luminaire head perfectly complements any outdoor lighting design project.

Colour:

anthracite

Glass color:

clear
opal

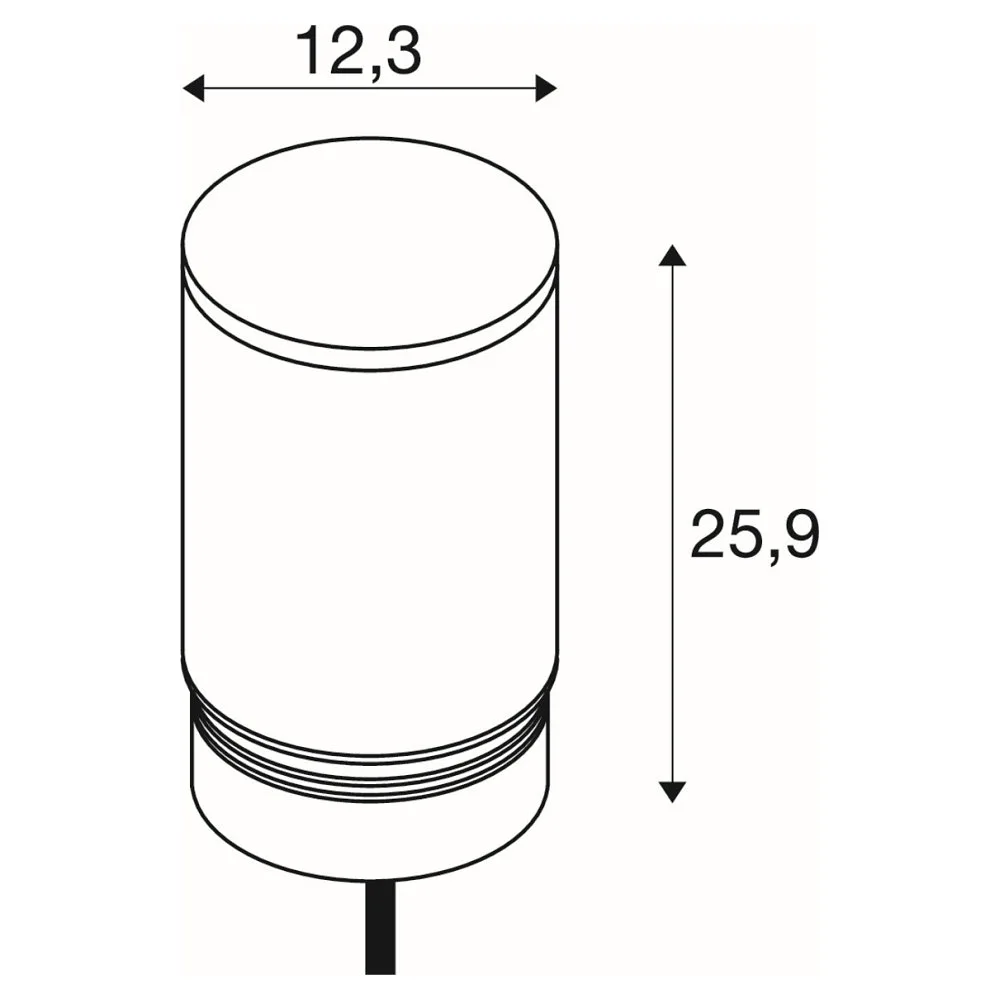

Dimension:

Ø∕ H: 12.3/25.9 cm

Material:

aluminium

Weight:

2.174 kg

Product type:

luminaire head

Lamp shape:

round

Bulbs in delivery:

yes

Accessories:

driver - included in delivery
connection box - not included in delivery
concrete anchor - not included in delivery
controller - not included in delivery
dimmer - not included in delivery
socket - not included in delivery

Application area:

suitable for outdoor use

Field of application:

floor

Operating voltage:

220-240 V~

Dimmable:

yes

Dimmability:

DALI

Power frequency:

50/60 Hz

Power consumption:

19 W

LED can be replaced :

Bulb type:

LED

Number of bulbs:

Voltage:

open cable end

Light emission:

direct and indirect

Beam direction:

all around 360°

Light flux:

350-370 lm

Nominal current:

500 mA

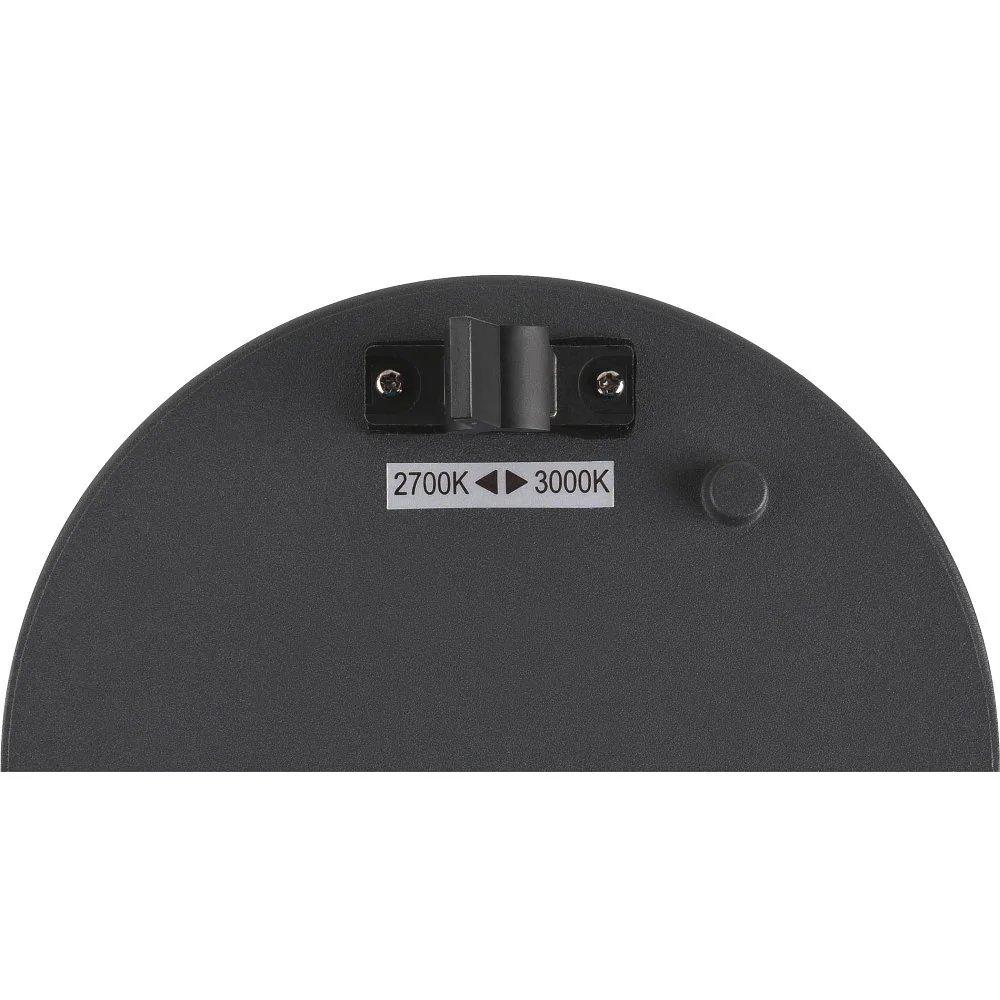

Colour temperature:

2700 | 3000 K

Average life span of a bulb in hours:

50000 h

Colour rendering index:

90 Ra

IK-Rating:

IK10 up to 20.00 Joule

Admissible burning position:

Throughwiring (installation of multiple luminaires in a row) is possible:

yes

Length of connection lead:

90 cm

Protection class:

IP-protection class:

IP65

Additional information:

Very good colour rendering.
Notice for the end user: The light source of this luminaire may only be replaced by the manufacturer or by a service technician appointed by him.

ambient temperature:

-20 - 35°C

Energy efficiency category:

EPREL No:

1370514

Energy consumption:

19 kWh/1.000 h

Article number:

1006392

Purchasing quantity:

1 piece

Brand:
