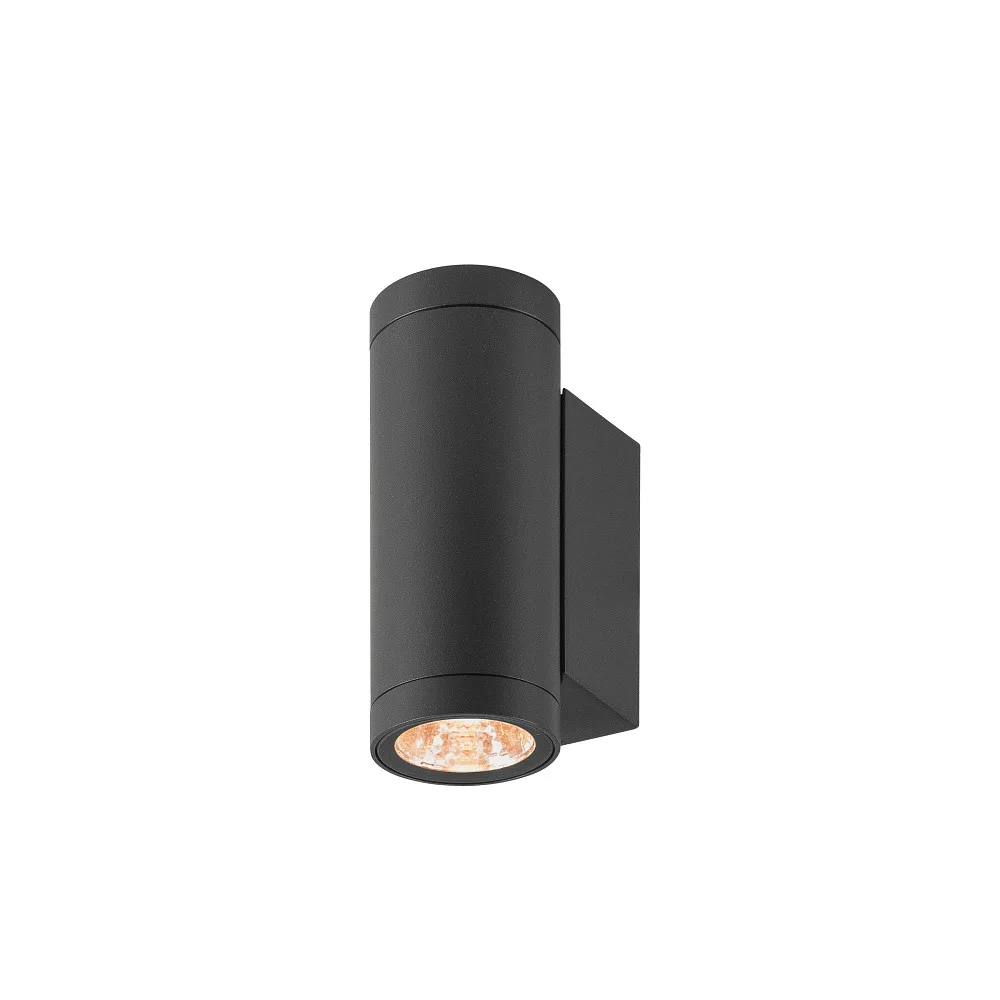

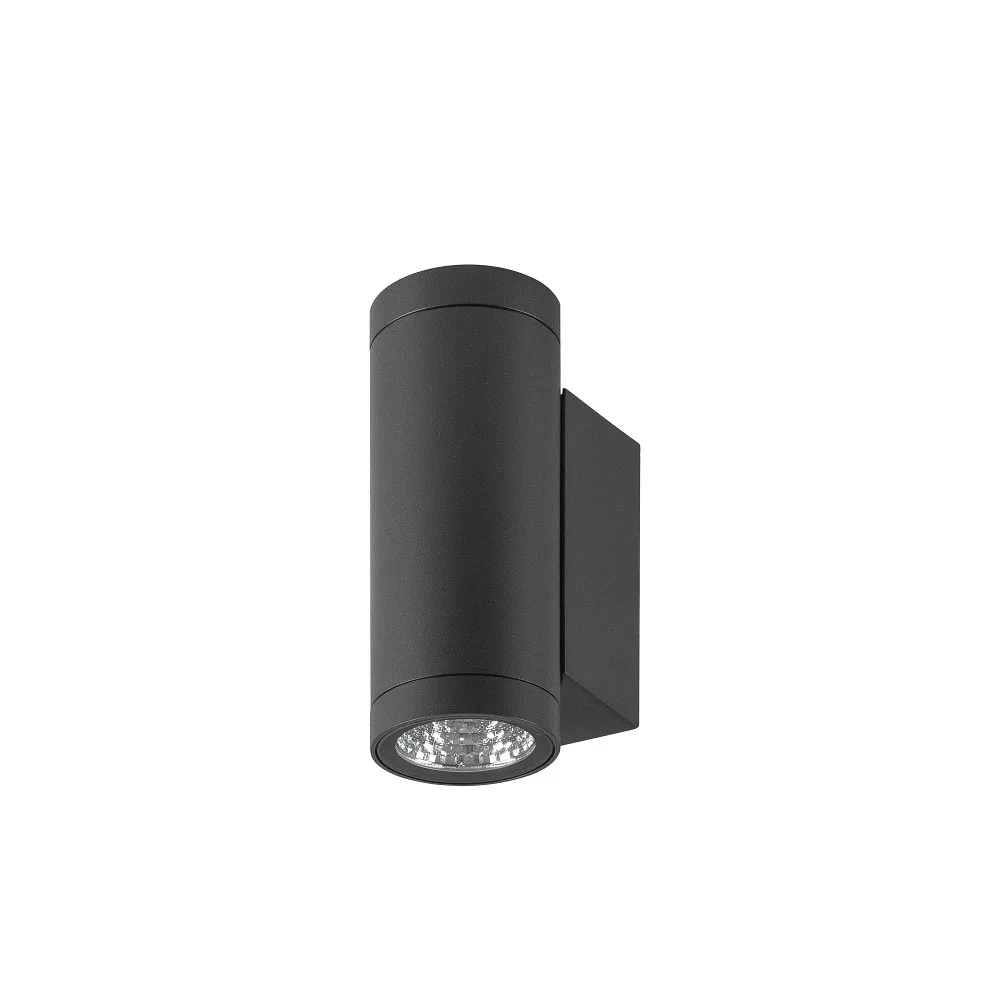

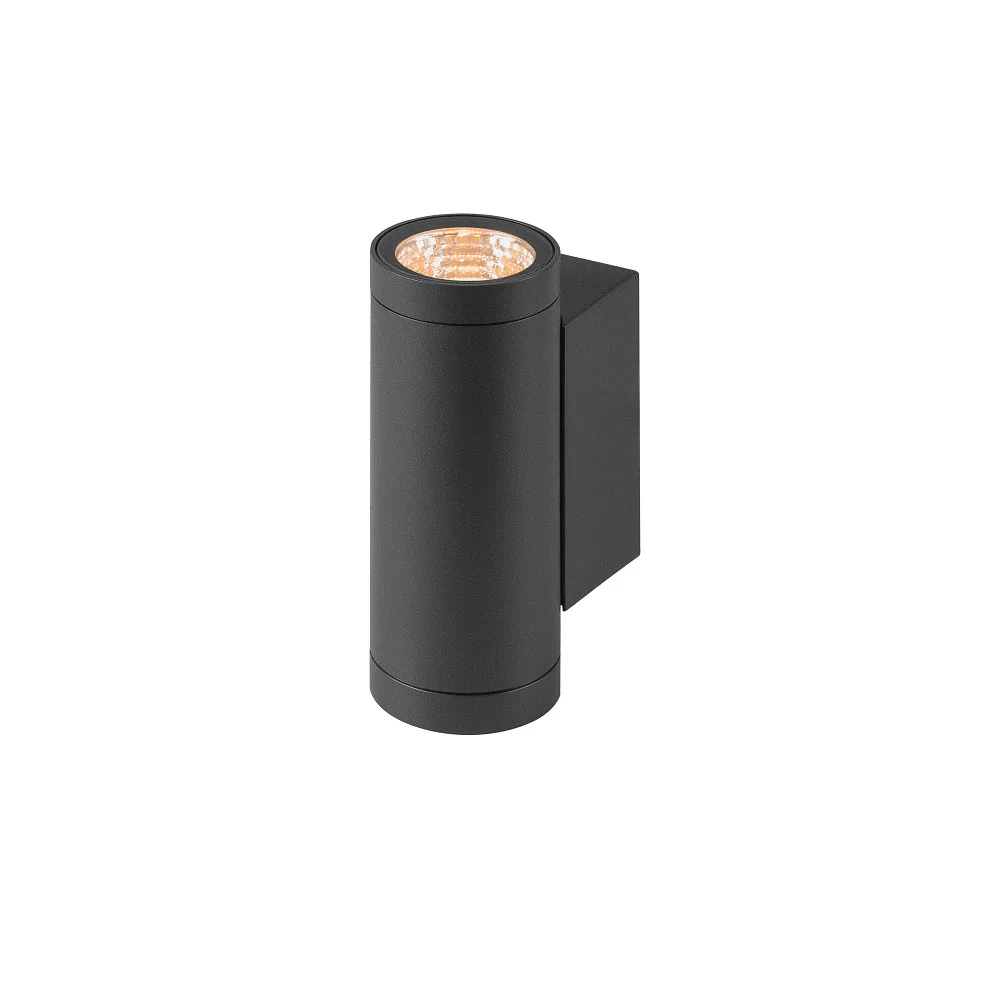

outdoor wall luminaire HELIA PRO S UP/DOWN up / down, cylindrical, DALI controllable, impact resistant IP65, anthracite

SLV




Modern and Functional Design

The HELIA PRO S UP/DOWN LED wall light impresses with its puristic, cylindrical design that perfectly combines elegance and functionality. With a height of 17.5 cm and a slim diameter of 6.5 cm, the anthracite-coated light harmoniously fits into a wide variety of environments. The aluminum housing is powder-coated, providing optimal protection against environmental influences. This high-quality workmanship ensures durability and a timeless look.

Efficient Lighting with Warm White Light

The HELIA PRO S UP/DOWN features two symmetrical light exits that emit light both upwards and downwards. With a color temperature of 2700 Kelvin, the luminaire produces an extra warm white light that creates a pleasant atmosphere. The color rendering index of over 80 Ra guarantees natural colors and high light quality. The luminous flux is 600 lumens with an energy consumption of only 6 watts, resulting in a very high energy efficiency of 100 lm/W.

Robust Technology and Protection Classes

This wall light is equipped with the IP65 protection rating, making it safe against dust and water jets. Additionally, the IK06 classification effectively protects the housing against vandalism, accidents, or hail. The sturdy aluminum housing is also resistant to sea air, allowing the luminaire to operate reliably near the coast or in salty air. This makes the HELIA PRO S UP/DOWN ideal for various demanding applications.

Flexible Control and Easy Installation

The HELIA PRO S UP/DOWN is DALI-dimmable, allowing stepless adjustment of the light intensity and thus enabling different lighting moods. The necessary driver is included in the delivery, while controllers and dimmers are available optionally. The integrated through-wiring allows the installation of multiple luminaires on a common line. This saves time and significantly simplifies installation, especially for larger projects with several luminaires.

Durability and Versatile Applications

With an average lifespan of 50,000 hours, the HELIA PRO S UP/DOWN offers a reliable and low-maintenance lighting solution. The LED driver and module are easily replaceable if needed, further extending the luminaire's lifespan. The combination of robust materials, energy-efficient technology, and attractive design makes this luminaire an excellent choice for private, commercial, and public applications, including hotels, restaurants, and cafés.

Colour:
anthracite
lacquered
Glass color:
transparent
Dimension:

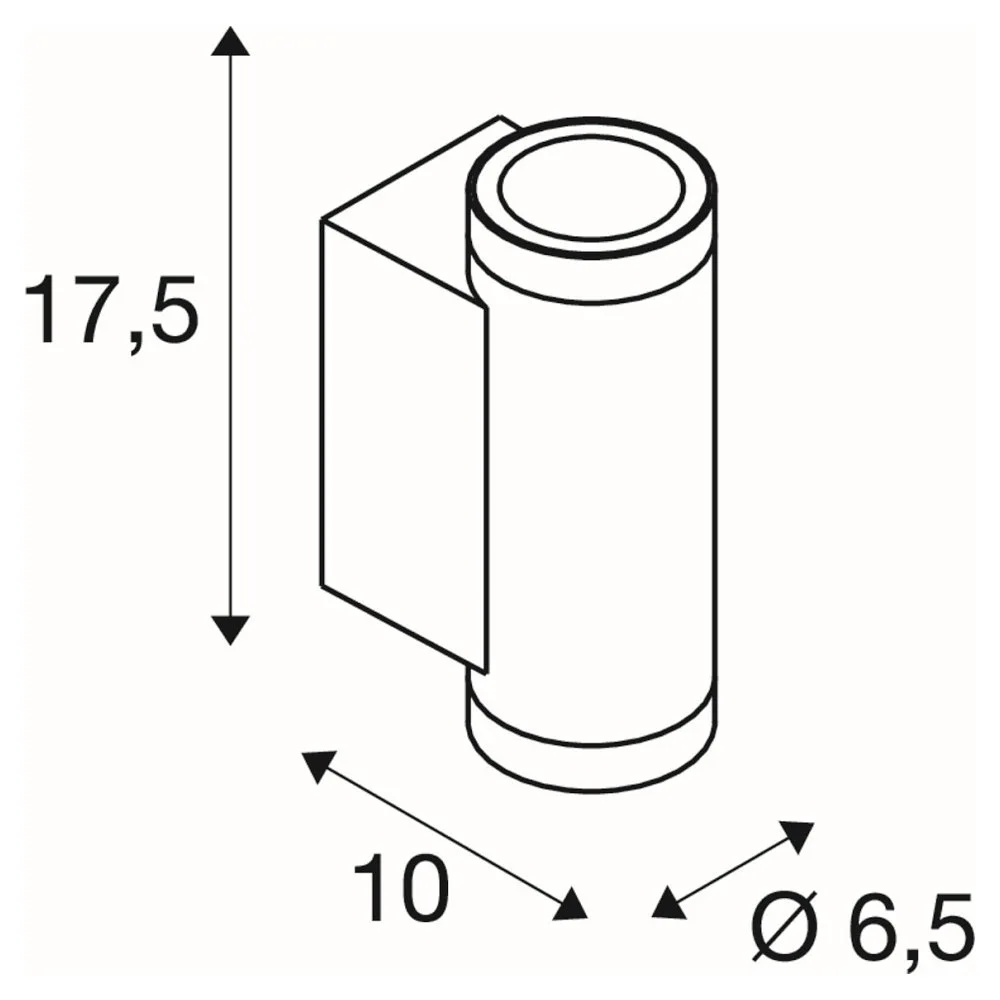

Ø∕ L∕ B∕ H: 6,5∕ 10∕ 6,5∕ 17,5 cm
Material:
aluminium
plastic
powder coated
Weight:
0,87 kg
Product type:
outdoor wall luminaire
Accessories:
driver - included in delivery
controller - not included in delivery
dimmer - not included in delivery
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI
Power frequency:
50/60 Hz
Power consumption:
6 W
Emitting angle:
24 °
Number of bulbs:
2
Voltage:
Clamp
Light colour:
extra warm white
Beam direction:
up / down
Light flux:
600 lm
Light yield:
100 lm/W
Colour temperature:
2700 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>80 Ra
1B
IK-Rating:
IK06 up to 1.00 Joule
IP-protection class:
IP65
resistant to sea air:
yes
ambient temperature:
-25 ... +45 °C
Energy efficiency category:
D
Energy consumption:
6 kWh/1.000 h
Article number:
1010163
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
