pendant luminaire QUIMERA - PHASE CCT Switch, switchable IP20, copper dimmable

SLV

Print product information sheet▶

question regarding the article

SLV pendant luminaire QUIMERA - PHASE CCT Switch, switchable IP20, copper dimmable

Print product information sheet▶

question regarding the article

Product data sheet

You do not have the permission to see the prices

Shipping time: in stock

Product no.: 1008034
EAN: 4024163292009
In stock

Alternative product variants:

pendant luminaire QUIMERA - PHASE CCT Switch, switchable IP20, bronze dimmable pendant luminaire QUIMERA - PHASE CCT Switch, switchable IP20, brushed brass dimmable pendant luminaire QUIMERA - PHASE CCT Switch, switchable IP20, copper dimmable

Technical details
Downloads

Cable color:

black

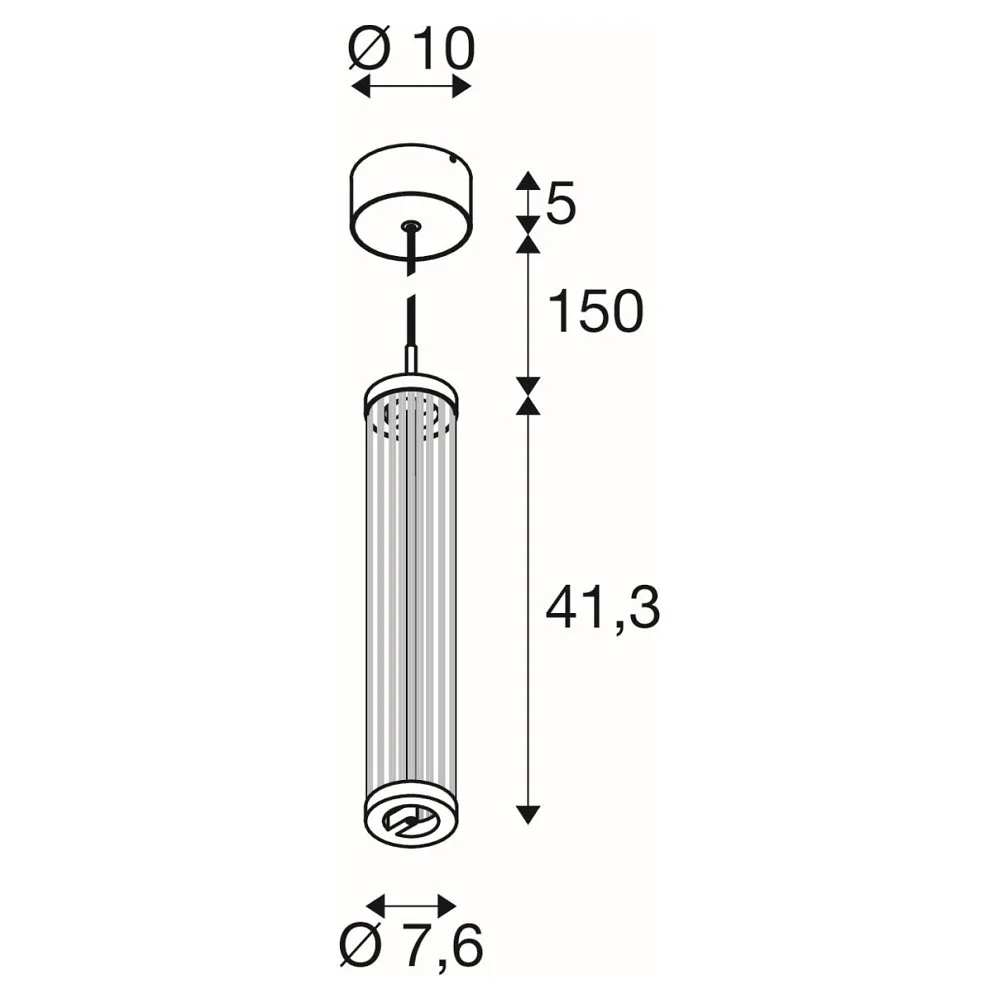

Dimension:

total-Ø∕ H: 10∕ 197 cm
luminaire body-Ø∕ H: 7,6∕ 47 cm

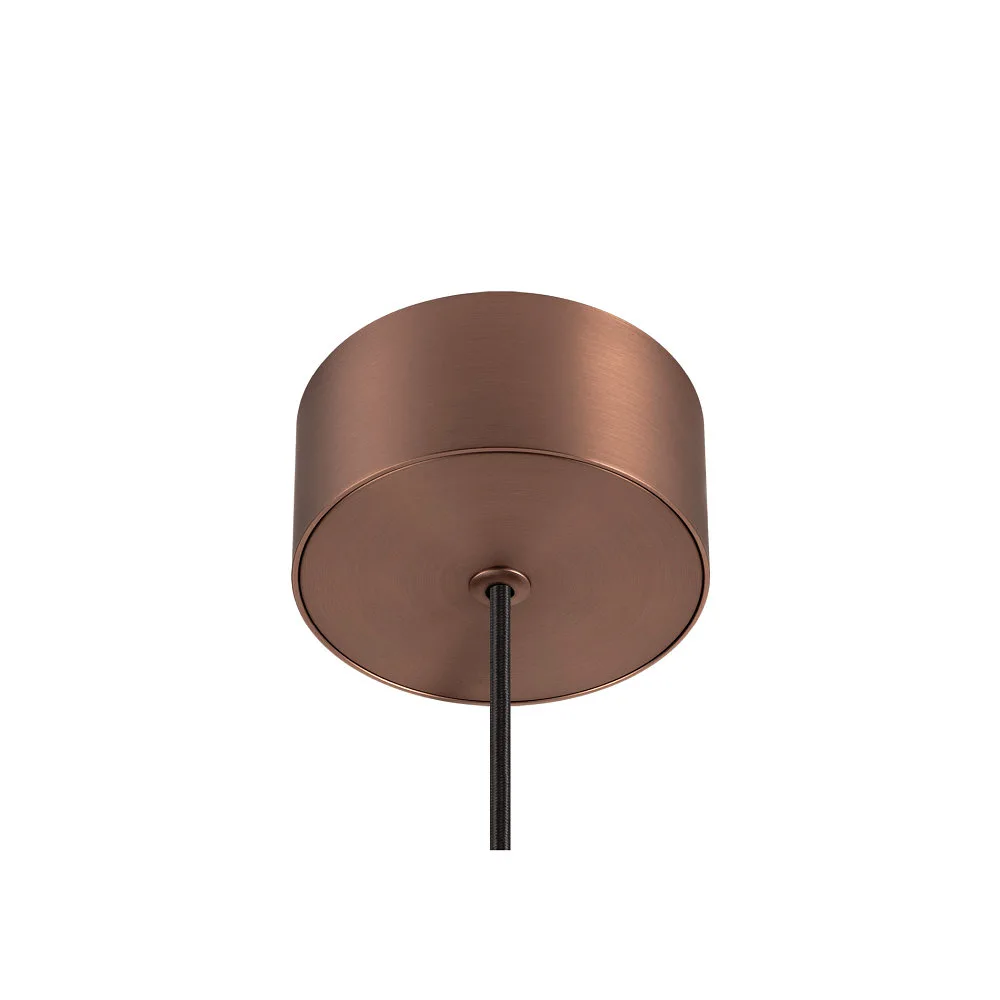

canopy-Ø∕ H: 10∕ 5 cm

Material:

aluminium

Weight:

1.98 kg

luminary type:

pendant luminaire

Lamp shape:

round

Accessories:

suspension - included in delivery
control gear - included in delivery
dimmer - not included in delivery

Application area:

suitable for indoor use

Field of application:

ceiling

Operating voltage:

220-240

Dimmable:

yes

Dimmability:

trailing edge

Power frequency:

50/60 Hz

Power consumption:

8,2 W

Light colour:

extra warm white to warm white

Light emission:

direct

Beam direction:

all around 360°

Light flux:

310 lm

Light yield:

39 lm/W

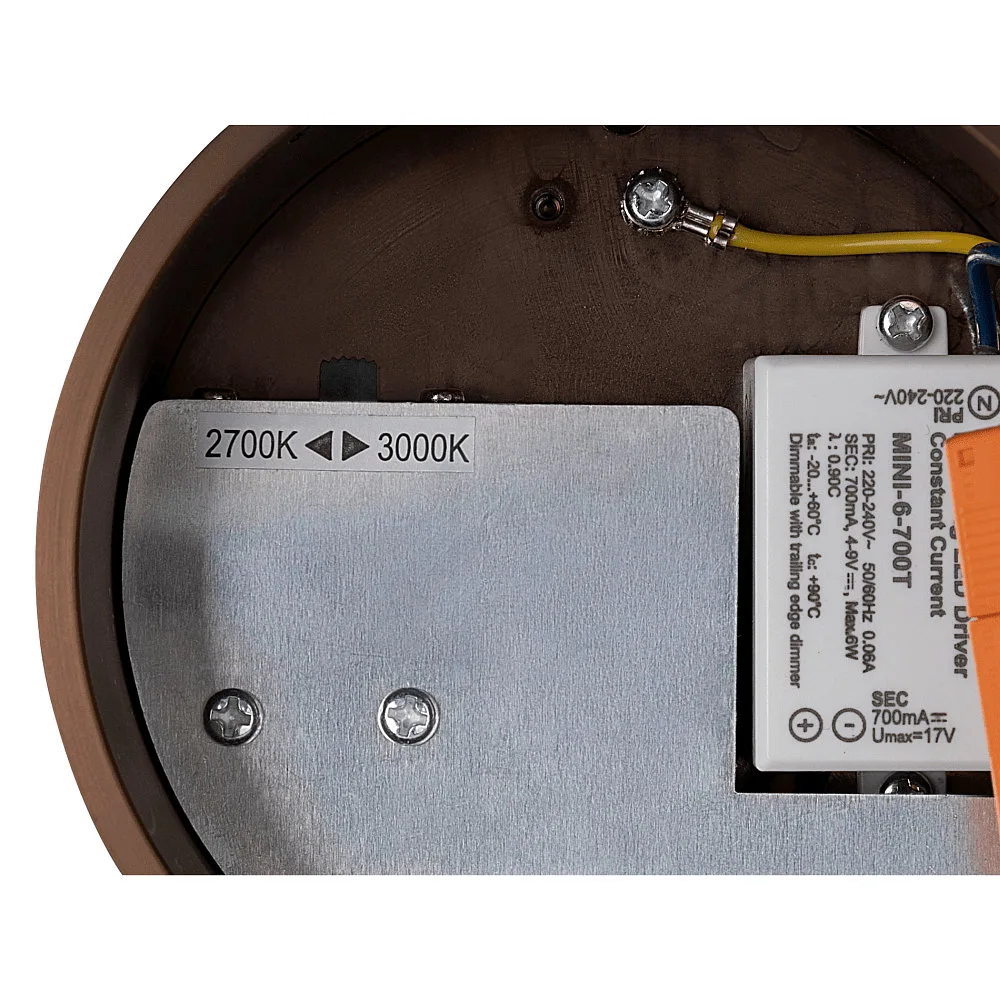

Colour temperature:

2700 / 3000 K

Average life span of a bulb in hours:

50000 h

Colour rendering index:

90-100 Ra
1A

IK-Rating:

IK03 up to 0.35 Joule

Pendulum cable length (can be shortened):

150 cm

Mounting:

surfaced mounting

Protection class:

IP-protection class:

IP20

Product ENEC tested:

yes

Additional information:

Light distribution: symmetrical
Light emission: direct

Energy efficiency category:

EPREL No:

2014569

Energy consumption:

9 kWh/1.000 h

Article number:

1008034

Brand:

SLV

Manufacturer:

SLV

Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
