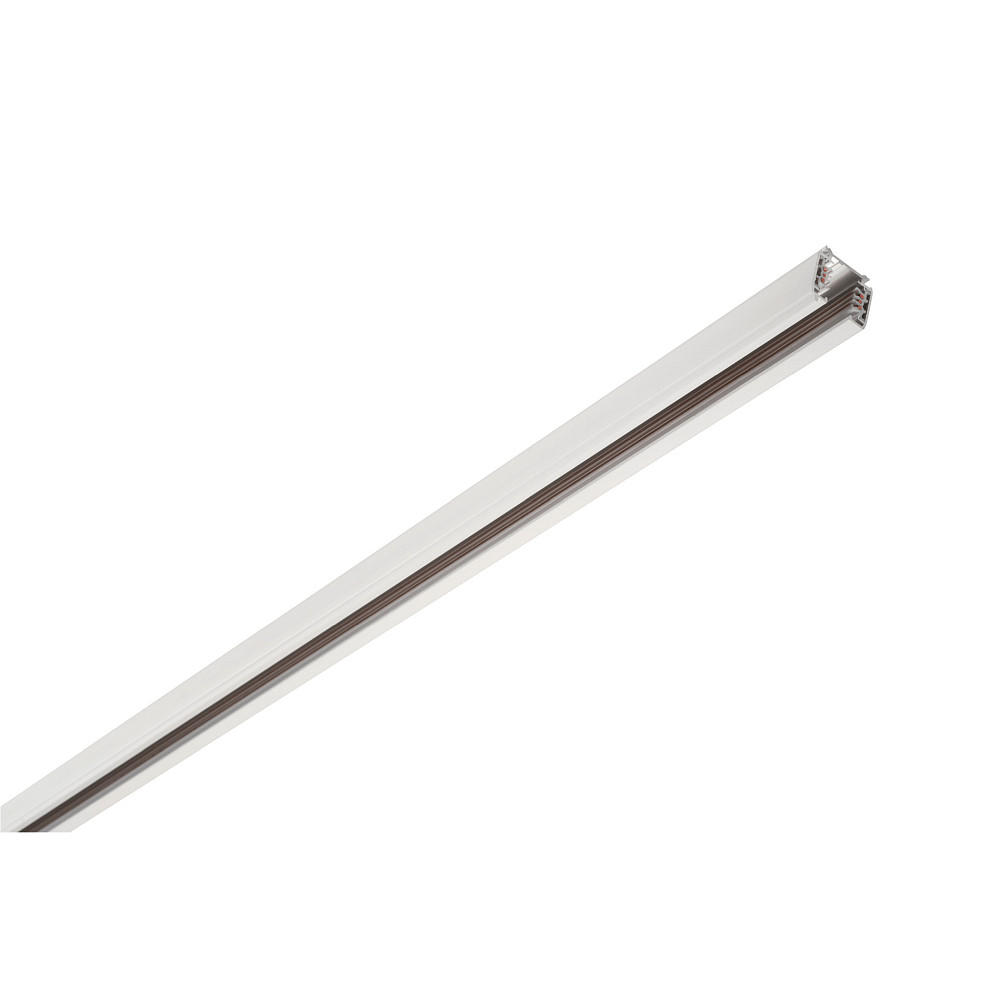

S-TRACK 3-Phase High voltage track 400cm, DALI controllable, white

Innovative 3-Phase HV Surface-Mounted Busbar S-TRACK PHASE & DALI

The 3-phase HV surface-mounted busbar S-TRACK PHASE & DALI from SLV offers a modern solution for the flexible integration and positioning of luminaires. With a length of 400 cm and a surface-mounted installation type, this busbar is ideal for creating customized lighting concepts. The busbar is finished in timeless white and impresses with an elegant design that harmoniously blends into various room concepts.

Technical Details and Material Quality

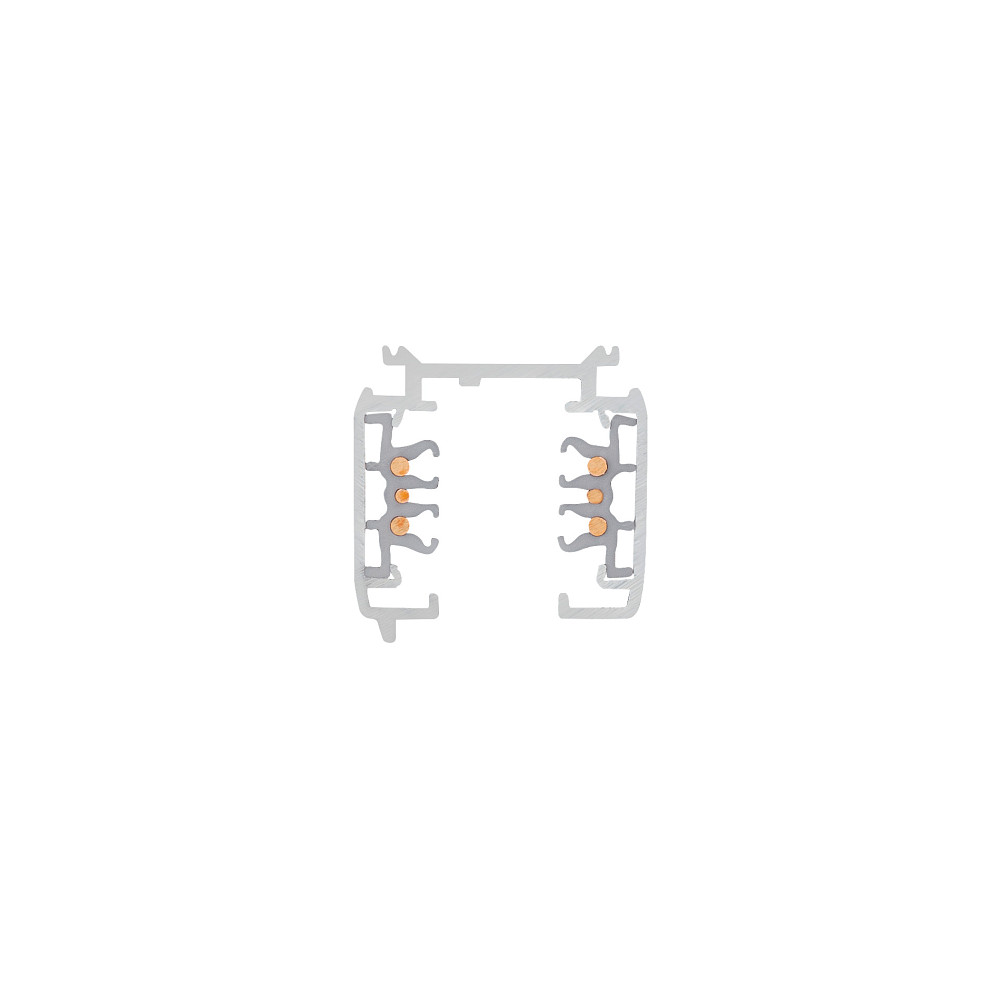

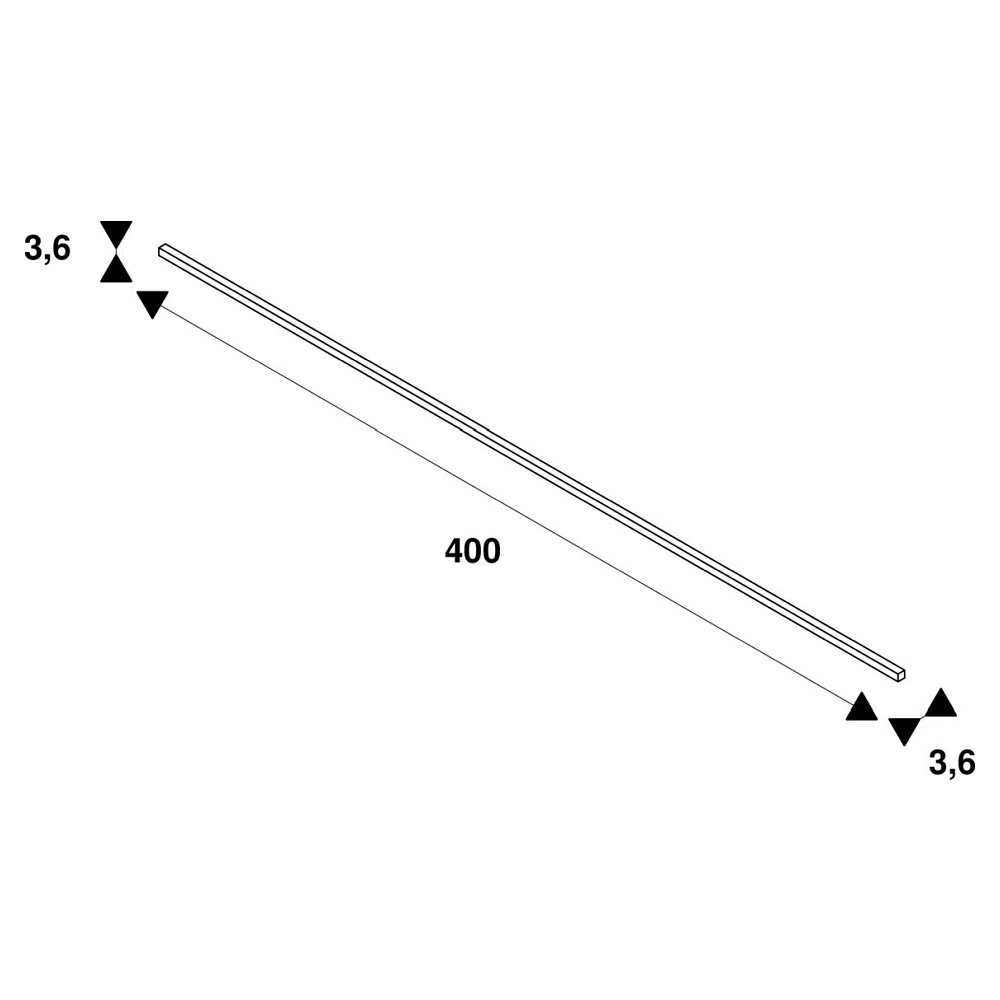

Made from robust aluminum combined with plastic and copper conductors, the busbar ensures a stable and lightweight construction. The operating voltage ranges between 220 and 250 volts, with a maximum current load capacity of 16 amperes. The IP20 protection rating provides reliable protection against contact and solid foreign objects. The dimensions of 400 cm length, 3.6 cm width, and 3.6 cm height allow for discreet and flexible installation.

DALI Dimming Function for Smart Control

A special highlight is the integrated DALI dimming function, which enables compatible luminaires to be digitally addressed, evaluated, and controlled individually. This allows for the implementation of modern lighting scenarios that can be optimally adapted to changing requirements. The busbar is compatible with digital building automation systems, enabling easy intelligent lighting control.

Flexible Installation and Adaptability

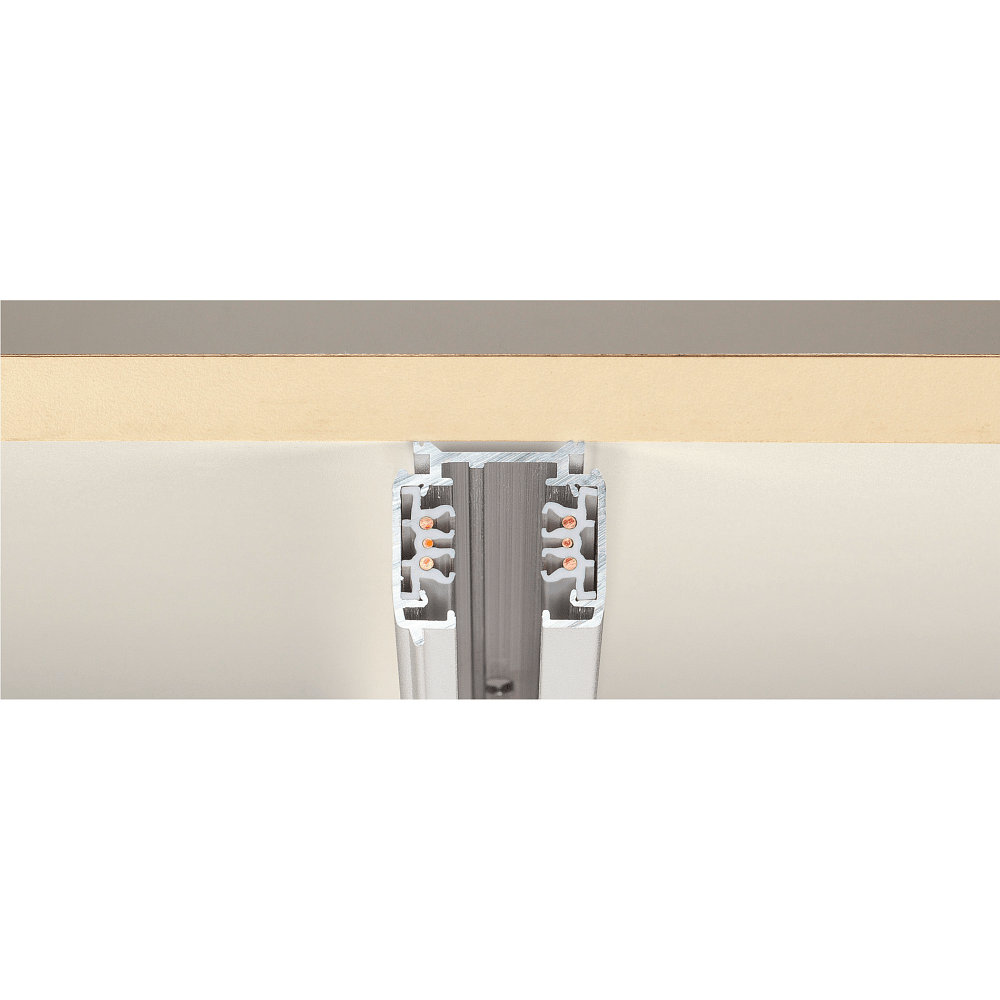

The S-TRACK PHASE & DALI busbar is suitable for mounting on both ceilings and walls. It can be cut to the desired length with a standard metal hacksaw to perfectly fit spatial conditions. Optional accessories, such as power feed units, end caps, or connectors, are available separately and allow for individual expansion or modification of the rail system.

Versatile Applications and Accessories

With the optional suspension, the rail system can also be used as a pendant rail, offering additional flexibility during installation. Although accessories like luminaires, power feed units, and end caps are not included in the delivery, the busbar can be expanded and adapted to specific requirements using these components. The combination of high-quality workmanship, digital controllability, and ease of use makes this product an excellent choice for sophisticated lighting design.
