Wall luminaire LOGS WALL, square, LED warmwhite, 6W,, anthracite

SLV


D
Product data sheet

You do not have the permission to see the prices

Shipping time: in stock

Product no.: 232105
EAN: 4024163131353
In stock



SLV Wall luminaire LOGS WALL, square, LED warmwhite, 6W,, anthracite

LED Outdoor Wall Light LOGS WALL, IP65, Up/Down, indirect, Aluminum

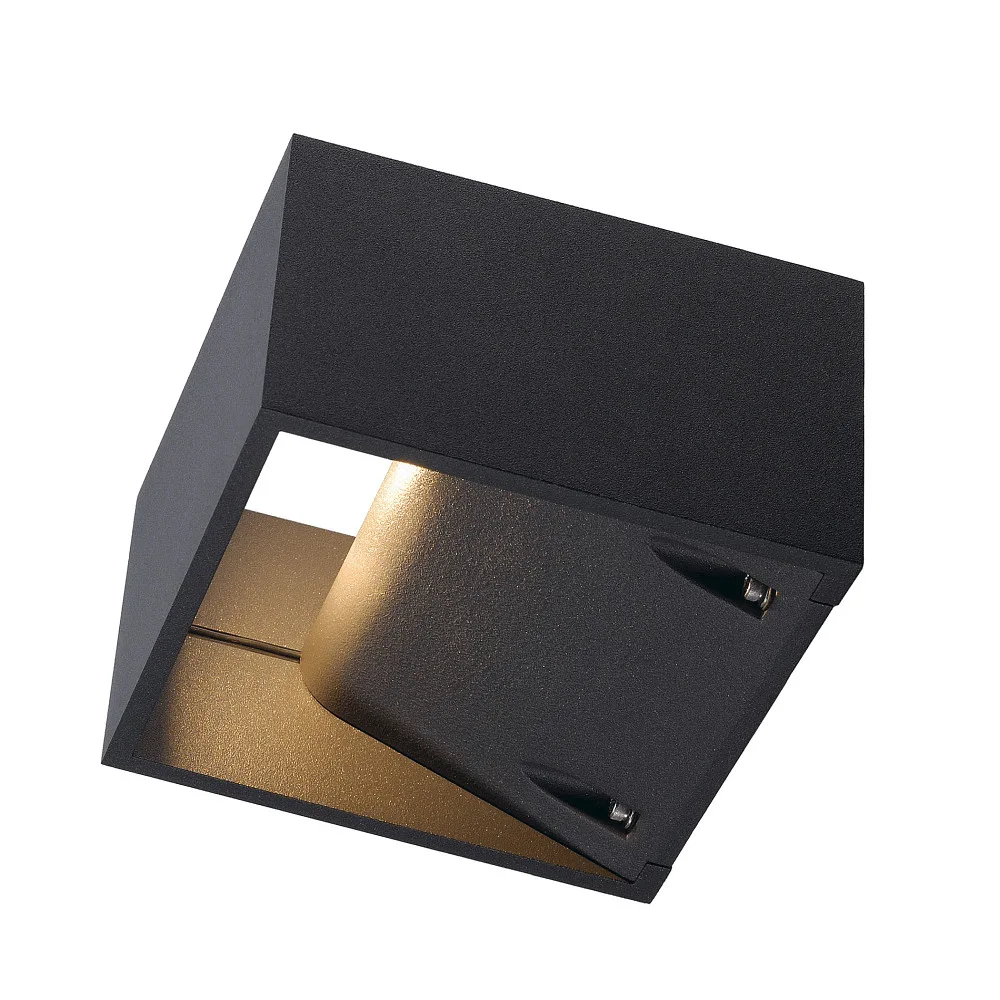

The LED outdoor wall light LOGS WALL is a square, flat luminaire made of aluminum, suitable for both indoor and outdoor use. With dimensions of 13 x 8 x 13.2 cm and a weight of 0.9 kg, it is compact and easy to install.

Technical Details and Energy Efficiency

The luminaire has a power consumption of 9.5W and a light output of 520lm. The color temperature is 3000K, corresponding to warm white light. The energy efficiency class is D and the luminous efficacy is 54.74lm/W. The average lamp life is 40000 hours.

Indirect Light Distribution and Symmetrical Effects

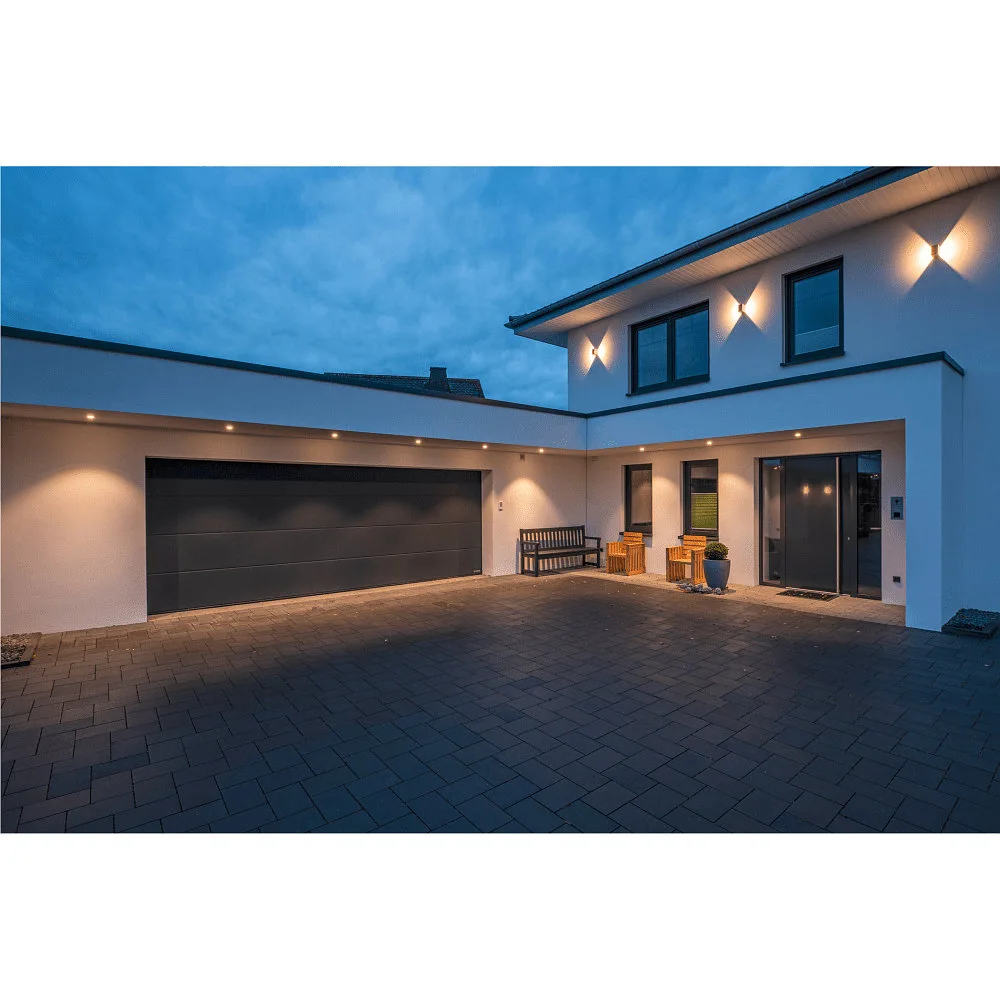

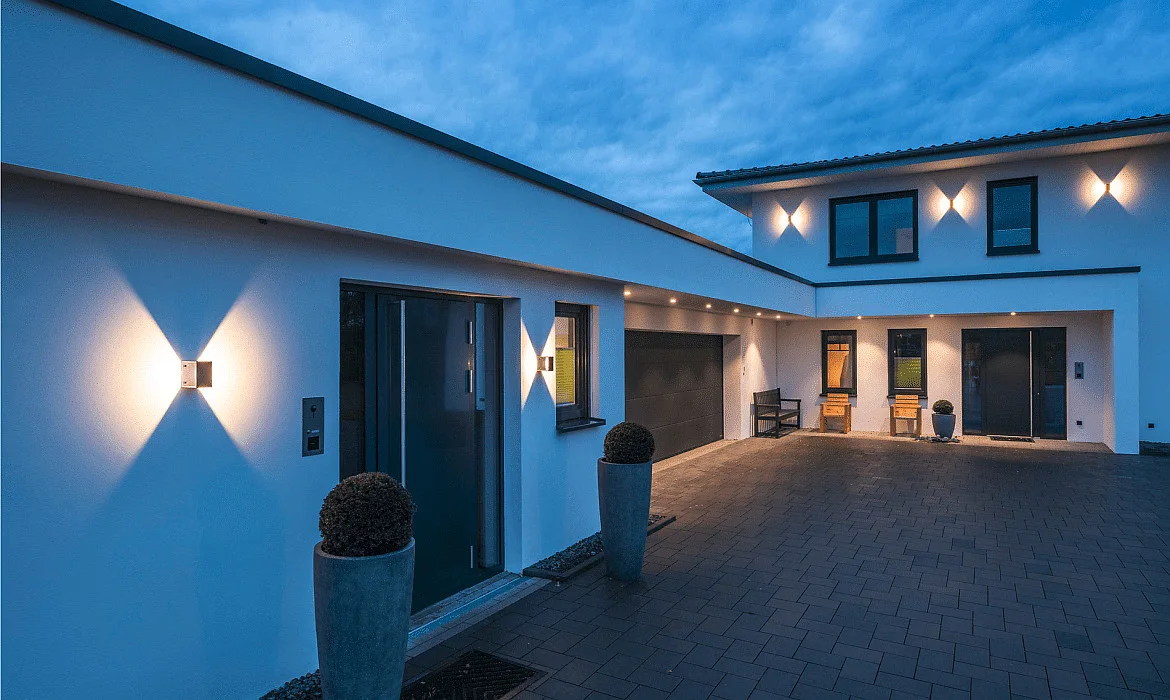

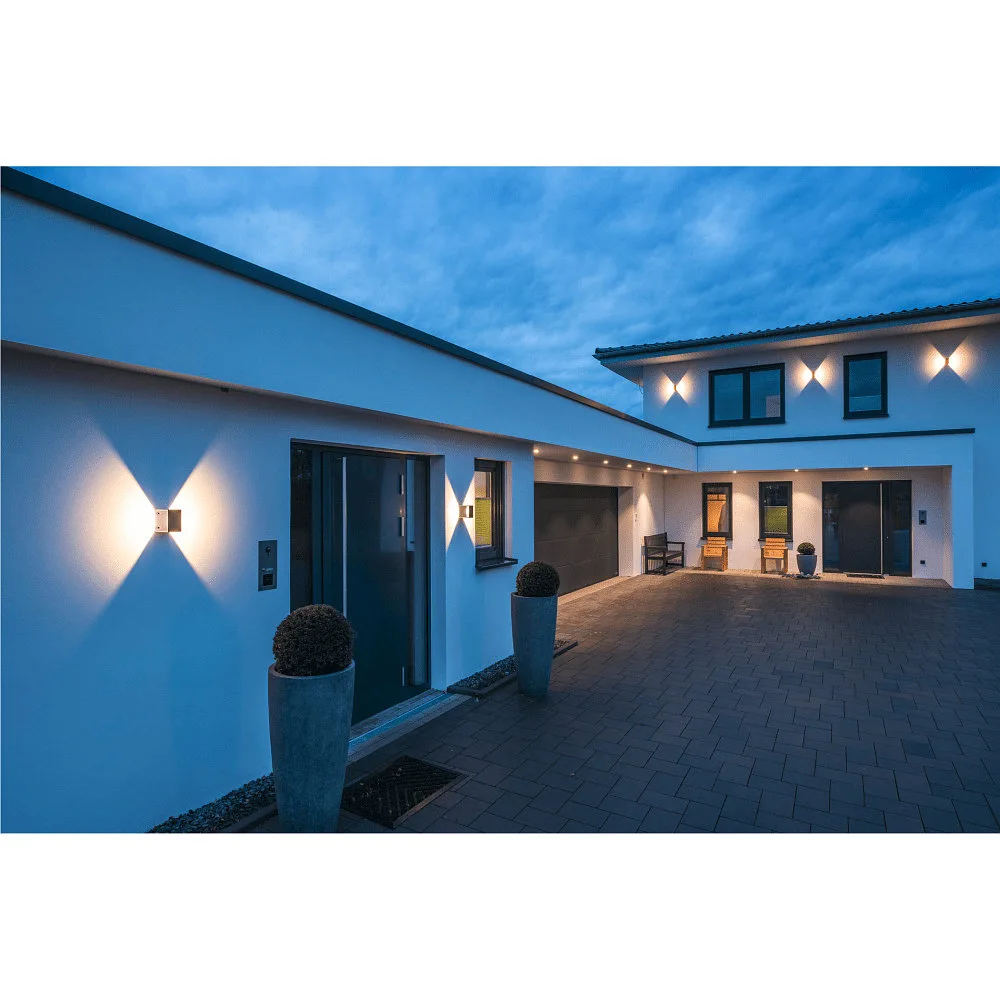

The LOGS WALL features indirect light distribution upwards and downwards. A COB LED on the front inside throws the light onto the trapezoidal reflector, creating soft and symmetrical light effects on the facade, terrace, or entrance area.

Robust Construction and Protection against Weather Influences

Thanks to its robust aluminum construction and IP65 protection, the outdoor wall light LOGS WALL is protected against splash water and dust. It is ideal for outdoor use, where it can withstand wind and weather.

Integrated LED Driver and Easy Installation

The LOGS WALL has an integrated LED driver and is ready for connection to 230V AC mains voltage. The installation is simple and uncomplicated through surface mounting. With a plug-in type clamp connection, the installation is quickly done.

Article number:
232105
Purchasing quantity:
1 piece
Brand:
SLV
Energy efficiency category:
D
EPREL No:
916376
Product type:
outdoor wall luminaire
Energy consumption:
10 kWh/1.000 h
Manufacturer:
SLV
Operating voltage:
220-240 V~
Dimmable:
no
Lamp shape:
square
Power frequency:
50/60 Hz
Socket of the bulb:
LED
Power consumption:
9,5 W
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Lamps/bulbs:
COB LED
Voltage:
Clamp
Light colour:
warm white
Light emission:
indirect
Beam direction:
up / down
Light flux:
520 lm
Light yield:
54,74 lm/W
Nominal current:
500 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
L70B50: 40000 h
Colour rendering index:
80 Ra
1B
Colour:
anthracite
Material:
aluminium
Dimension:

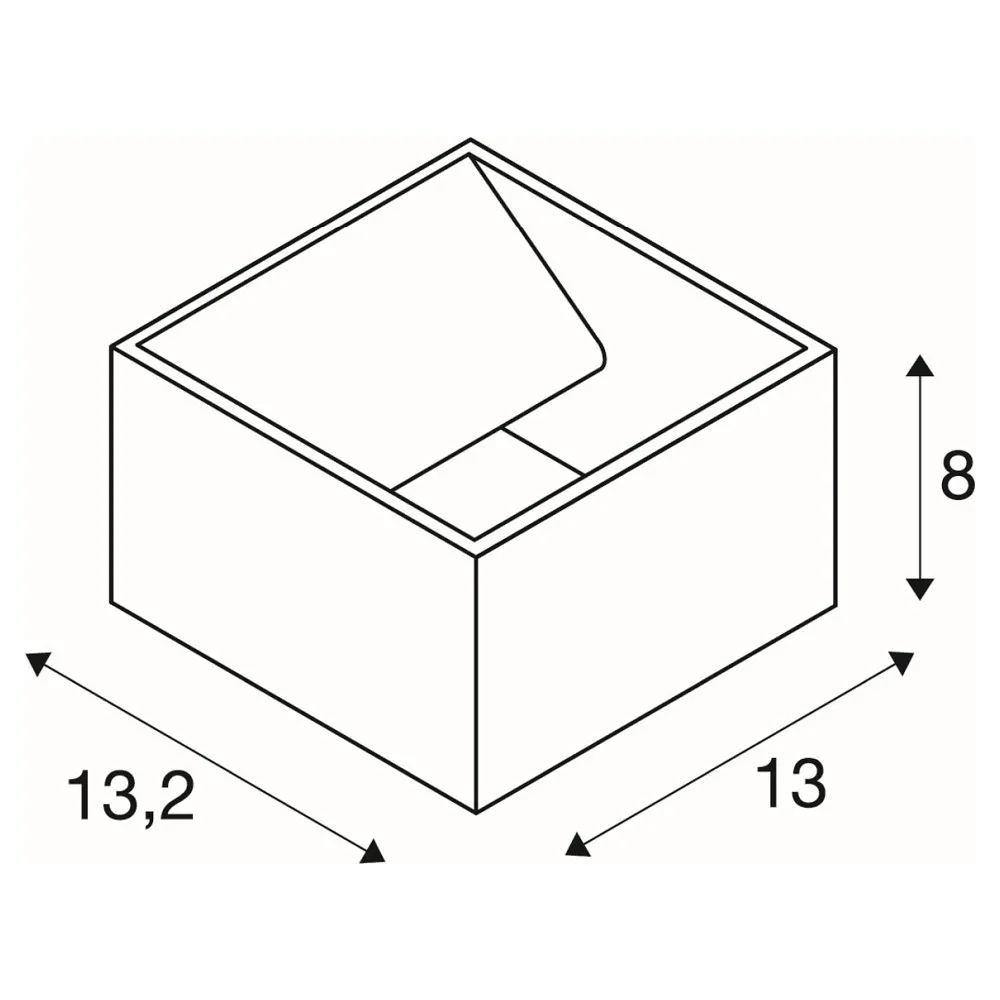

W∕ H∕ D: 13/8/13.2 cm
Weight:
0.9 kg
Max. current carrying capacity:
4,7 A
Field of application:
wall
Protection class:
1
IP-protection class:
IP65
Application area:
suitable for indoor use, suitable for outdoor use
Additional information:
ta 40
Light emission single-beam, directed downwards
Accessories:
driver incl
reflector incl
ambient temperature:
max. 40C
